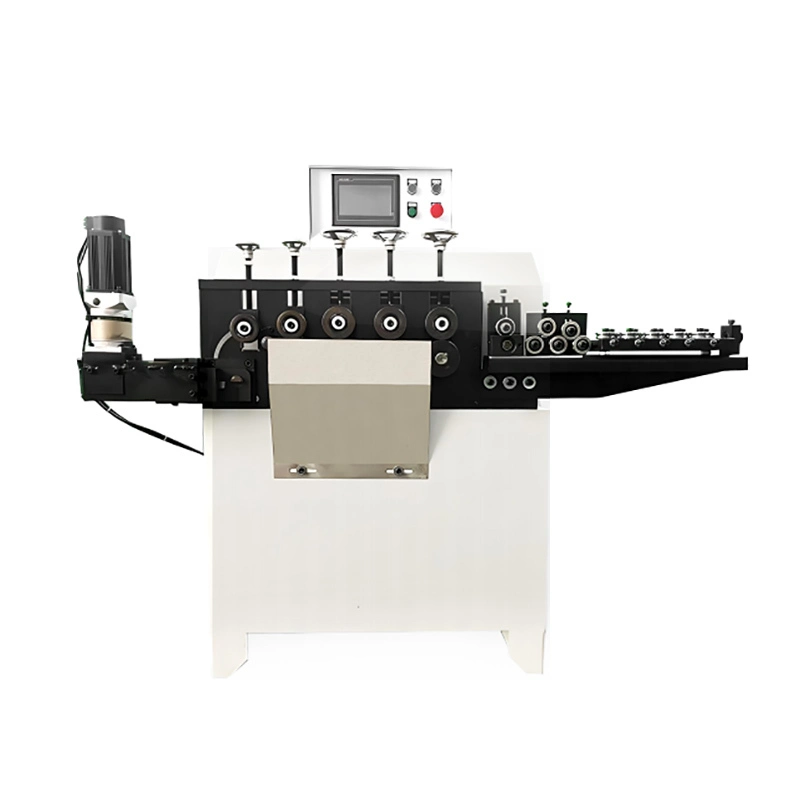

Jc-Dq Looped Machine Equipment
Specializing in the production of circle, arc and spring products
1. Hydraulic ring machine:
0.5mm (imported encoder can be selected to improve the stable precision)
2:Servo ring machine:
0.5mm(imported encoder can be selected to improve the stable precision)
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Technical parameters
| Automatic Ring aking | |||||
| Wachine Specification | |||||
| Machine model | 6-14 | 8-16 | Large 6 axis | Large 8 axis | |
| Power Supply | 3Phases 380V | 3Phases 380V | 3Phases 380V | 3Phases 380V | |
| Feeding wire wheels sets | 4 | 5 | 6 | 8 | |
| Hydraulic motor power | 5.5 | 7.5 | 11 | 18 | |
| Hydraulic motor flow | 100m/min | 125m/min | 200m/min | 200m/min | |
| Cutter cylinder cutting | 100 | 63 | HOB100 | HOB125 | |
| force | |||||
| Oil pressure range | 0.3-1.0mpa | 0.3-1.2mpa | 0.3-1.5mpa | 0.3-1.5mpa | |
| Hydraulic oil model | 46#68# | 46#68# | 46#68# | 46#68# | |
| Available Wire Material | Round wire/ Flat wire / Square wire | ||||
| Wire diameter range | (Iron wire) 4-13MM | (Iron wire) 5-16MM | (Iron wire)8-18MM | (Iron wire) 8-20MM | |
| Machine size | 1800*950*1550 | 1980*950*1550 | 2300*1500*1700 | 2700*1500*1700 | |
| Ring range | 80-800 | 80-850 | 80-950 | 80-950 | |
| Hudraulic system | Pressure regulating valve | YES | YES | YES | YES |
| Decompression valve | 1 | 1 | 2 | 2 | |
| Solenoid valve | 3 | 3 | 3 | 3 | |
| Pressure gage | 1 | 1 | 2 | 2 | |
| Oil circuit base plate | 1 | 1 | 1 | 1 | |
| cooling pump | NO | NO | YES | YES | |
| Mechanical performance | The encoder reads the wire feeding data, and the microcomputer controls the wire circumference to determine the circle size. The control is simple, and the production is automatic after inputting the output and wire speed. | ||||
| The machine has manual automatic control,controlled slow feed and withdrawal (easy to debug the machine) | |||||
| Can be programmed to modify different setting data | |||||
Applications
image738_03
image738_02
image738_01
