A coil winding machine, also known as a coil winding machine, offers multiple advantages in the production of coils for various applications.
Firstly, a coil winding machine significantly improves the efficiency of the winding process by automating the repetitive and labor-intensive task of winding coils. This not only reduces manual labor costs but also increases production output and consistency, leading to higher overall productivity.
Product Description
Technical parameters

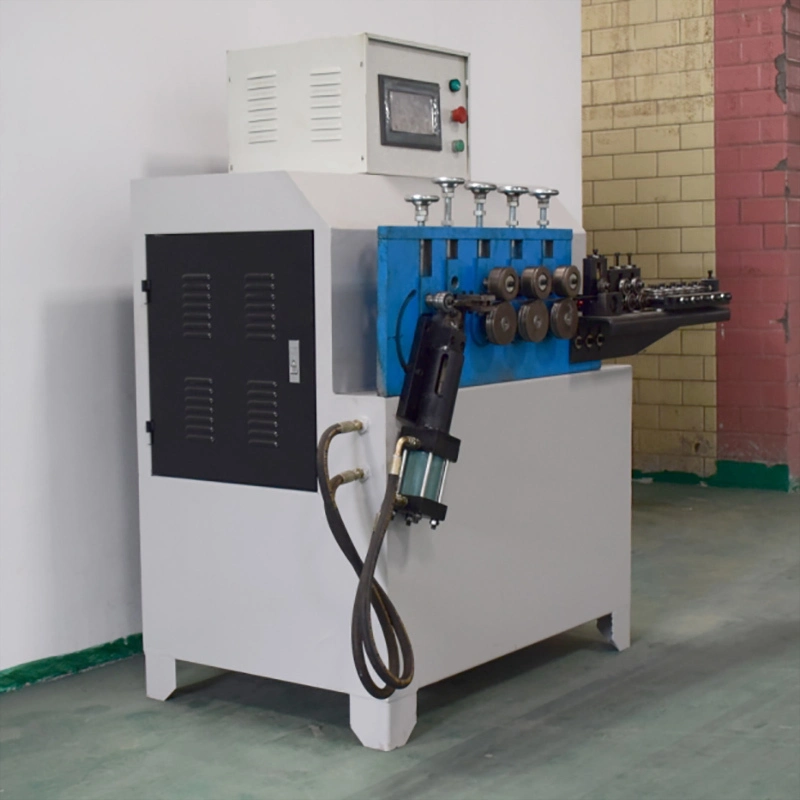

Machine parameter meter of hydraulic machine | ||
2-8 Ring machine | ||
Supply voltage | three-phase380v | |
Number of roulettes | 2 | |
Hydraulic motor power | 2.2 | |
Hydraulic motor flow | 160ml\min | |
Cut knife cylinder cutting force | 63 | |
Working speed (fast) | 25m/min | |
Circular accuracy | ±0.5mm | |
Planeness | 80% flatness, warping height is the height of the wire, round line as the standard | |
Oil pressure range | 0.3-0.5mpa | |
Hydraulic oil model | 46#68# | |
Applicable wire | Round, flat, square line | |
Scope of suitable wire | iron wire ø2-8mm | |
Appearance size | 1300*750*1450 | |
Circle diameter range | 80-750 | |
Hydraulic pressure system | Pressure regulating valve | have |
Atmospheric valve | No | |
Solenoid valve | 3 | |
Piezometer | 1 | |
Oil base plate | 1 | |
Cooling pump | no | |
Computery | Send wire motor | |
Stepper motor | ||
Drivers | ||
Control panel | 1 | |
Plc | ||
The decoder | 1000 | |
Mechanical behavior | The encoder reads the line data, and the microcomputer controls the circumference of the wire to circle the size of the ruler. The control is simple, and the input output line speed is automatically produced | |
The machine has manual automatic control, control of slow advance and retreat (easy to adjust the machine), automatic detection of broken material stop alarm | ||
Different setting data can be programmed to modified |
