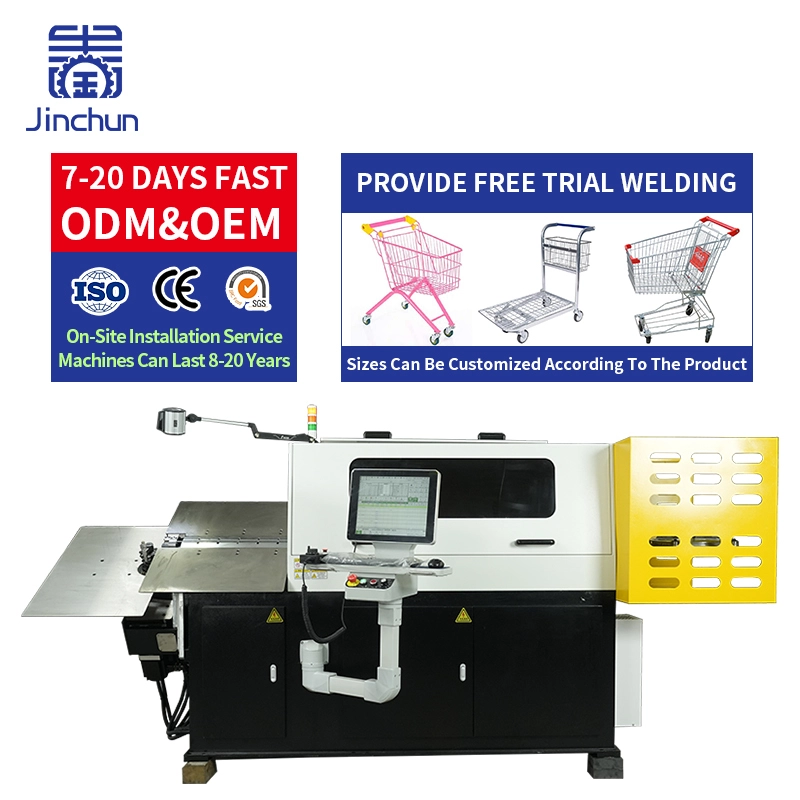

CNC wire bending macihine 3D Wire Bender Jc-100-9a
The 3D CNC wire bending machine is a valuable machine for creating intricate 3D shapes with precision, making it suitable for complex applications.
A variety of bend processing methods are used in these machines to meet various bending needs. The wire is received directly from the coil, straightened, bent, and cut accurately using the built-in software. The user can expect a precise output form with the correct bend, thanks to the machine's efficient operation.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Latform advantages
Technical parameters
| del | JC-100-9A CNC wire bending machine | |
| Processing wire diameter | 600N/mm² φ3.0mm- φ10.0mm | |
| 1900N/mm² φ3.0mm- φ8.0mm | ||
| Feeding wire wheels sets | 3sets | |
| Wire feeding accuracy | ±0.5mm | |
| Turn wire angle | 0 °-Infinite | |
| Platform lift height | +25mm~-120mm | |
| Torsion head lifting height | +25mm~-180mm | |
| Left and right moving range | left 100mm right 60mm | |
| Back and forth movement range | Forth 3 0 0mm back 1 0 0mm | |
| Maximum wire feeding speed | 40m/min | |
| Total power | 25.6KW | |
| Interface Language | Chinese/Englist | |
| Maximum load bear ing of automatic wir e feeder | 1500KG | |
| Machine weight | 3100KG | |
| k As chin e size | 3.5M*1.7M*1.4M | |
| CNC axis quantity | 9 axis (Japan Sanyo brand motor) | |
| External torsional motor power | 2.7KW | |
| Platform lift | 1.5KW | |
| Bending head strafe left/right | 2.0KW | |
| The feed box moves back and forth at | 4.5KW | |
| Internal twist | 2.7KW | |
| Integral lifting | 2.0KW | |
| Wire feeding | 5.5KW | |
| Rotate wire | 2.7KW | |
| Cutte | 2.0KW | |
Applications
