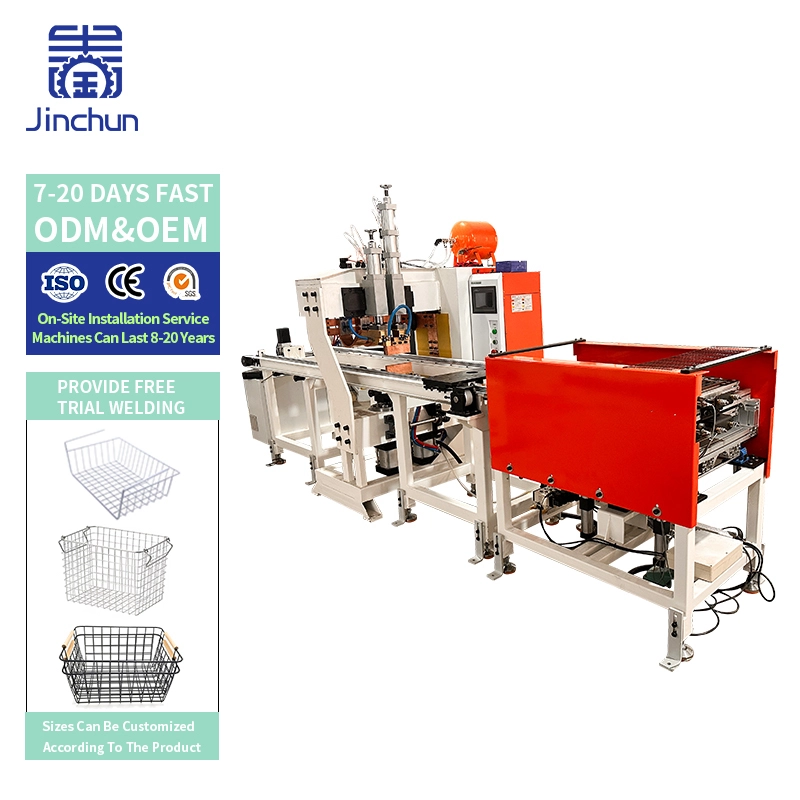

Heavy Duty Dual Cylinder Gantry Welder with CE Certification for Structural Wire Products
-
Tangible Benefits & Investment Value:
-
Unmatched Stability & Quality: The dual-cylinder gantry design solves the common problem of torch wobble in large welders, producing straight, uniform, and X-ray quality welds that meet the strictest industrial inspection standards, reducing rework to near zero.
-
Dramatically Increased Throughput: Automation eliminates manual labor for long seams. Achieve 3-5x faster production speeds compared to traditional manual or single-drive gantry welding, allowing you to complete large projects on time and bid more competitively.
-
Significant Labor & Cost Savings: One operator can manage multiple machines. The reduction in skilled welder dependency, coupled with lower gas/consumable usage from optimized parameters, directly cuts your per-unit production cost by 25-40%.
-
Enhanced Safety & Ergonomic Design: Removes operators from direct exposure to arc flash, fumes, and the physical strain of handling heavy welding torches over large areas, creating a safer and more compliant working environment.
-
Long-Term Reliability & ROI: Built for 24/7 operation with premium components and a simple, robust mechanical structure, it ensures minimal downtime and a rapid return on investment, often within 12-18 months for high-volume shops.
-
-
Industrial-Grade Control System: Centralized by a sophisticated PLC and HMI touchscreen interface, the system offers intuitive programming, real-time monitoring, and data logging. Users can create and store hundreds of weld programs for different products and materials (e.g., mild steel, stainless steel wires).
-
Compliance & Certification: The machine is manufactured in compliance with CE, ISO 9001, and IEC international standards.
About This Product
This Dual Cylinder Gantry Welding Machine represents a pinnacle of robust and precise large-format welding technology. Designed for industrial-scale fabrication, it integrates a heavy-duty portal (gantry) frame with a synchronized two-cylinder driving system, delivering unparalleled stability and power for continuous, high-quality welding of oversized workpieces. It is the definitive solution for manufacturers who prioritize structural integrity, production efficiency, and seamless automation in heavy-gauge metal joining.
Primary Applications & Use Cases:
This machine is purpose-built for fabricating large-scale structural and enclosure products:
Heavy Wire Mesh & Grating: Production of oversized welded mesh panels for industrial flooring, security barriers, and infrastructure projects.
Structural Steel Components: Welding of H-beams, I-beams, box girders, and trusses for construction and bridge work.
Industrial Storage & Transport: Fabrication of large pallet racks, shipping container frames, and heavy-duty trailer beds.
Architectural Metalwork: Creation of large decorative panels, gates, and structural facades.
Wind Power & Heavy Machinery: Manufacturing of internal structural components for towers and machinery bases.
Technical Parameters
|
power rating kVA |
230*230KVA（Could Customizable） |
|
rated voltage V |
3-phase AC380V ±10% （Could Customizable） |
|
rated load duration rate% |
50 |
|
rated frequency Hz |
50 |
|
maximum short circuit current kA |
42(5.7%) |
|
Maximum pressure N (0.5MPa air pressure) |
5000 |
|
working air pressure |
0.5~0.7MPa |
|
welding source |
duplicate supply |
|
welding current |
Process adjustment |
|
fixture travel speed |
Advance 500 mm/s |
|
actual welding size |
2000X6000mm （Could Customizable） |
|
Number of pressurization mechanisms |
20 items |
|
welding procedure |
welding by arrangement |
|
Work efficiency (one cycle welding time) |
Depends on the size of the workpiece |
|
Minimum opening × arm extension mm (spot welding position) |
|
|
Minimum opening × arm extension mm (convex weld position) |
|
|
electrode travel mm |
60--80 |
|
Cooling water flow rate L/min |
30 |
|
operational altitude |
800--900 |
|
Compression method |
pneumatic |
| Delivery Time | ||
|
Quantity (sets) |
1 - 1 |
> 1 |
|
Eastern Time in the US (days) |
15 |
To be determined |
| Customization | ||
|
Customized logo |
Minimum Order Quantity |
1 set |
|
Customized packaging |
Minimum Order Quantity |
1 set |
|
Graphic customization |
Minimum Order Quantity |
1 set |
Product Display
Product Information
|
Brand Name |
Jinchun / Xinliancheng |
|
Country of Origin |
Foshan, Guangdong, China |
|
Loading Port |
Foshan / Shenzhen / Guangzhou |
|
Payment Terms |
EXW / FOB / CIF |
