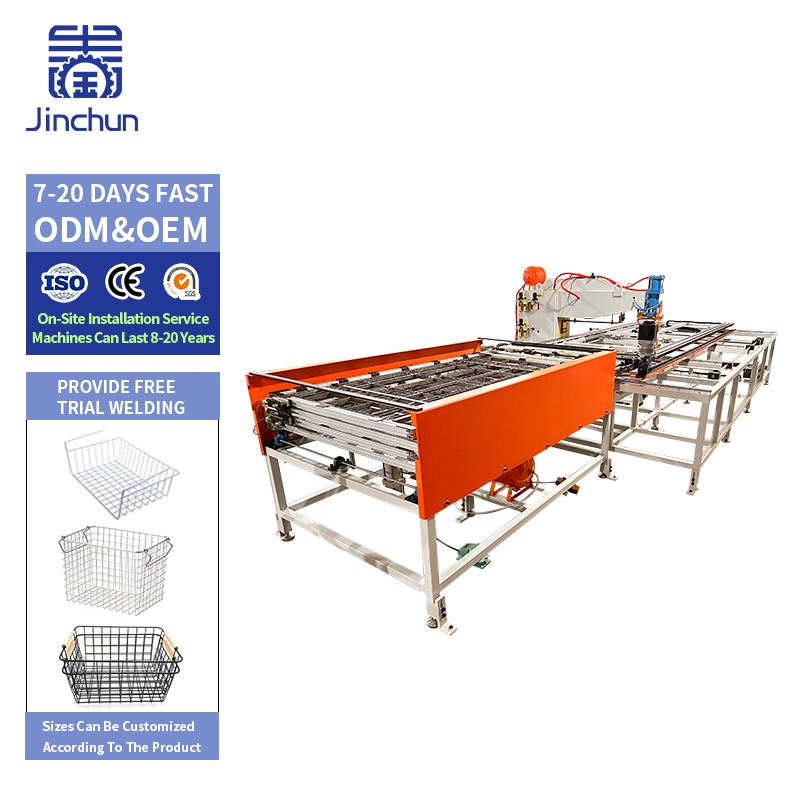

Synchronized Linked XY welding machine with CNC Control for Automated Mesh Fence Production
Key Features & Technical Specifications:
-
Innovative Dual-Mode System: Seamlessly switch between a fully Automatic CNC mode for high-volume, repetitive jobs and a Semi-Automatic/Manual mode for complex, custom, or prototype work. This flexibility allows you to handle diverse production demands without requiring multiple machines.
-
Patented Dual-Layer XY Platform: Our patented design features two independent, vertically-stacked working platforms, each equipped with its own high-precision XY-axis gantry system. This allows for simultaneous welding of identical parts or completely different products, effectively doubling your production throughput without doubling your floor space.
-
Advanced High-Frequency Inverter Technology: Both welding stations are powered by advanced high-frequency inverter power sources, ensuring stable arc performance, deep penetration, minimal spatter, and up to 30% higher energy efficiency compared to conventional welders. Parameters (current, voltage, pulse) are independently adjustable for each layer.
-
Industrial-Grade Control System: Centralized by a sophisticated PLC and HMI touchscreen interface, the system offers intuitive programming, real-time monitoring, and data logging. Users can create and store hundreds of weld programs for different products and materials (e.g., mild steel, stainless steel wires).
-
Compliance & Certification: The machine is manufactured in compliance with CE, ISO 9001, and IEC international standards.
About This Product
Empower your manufacturing flexibility with our Mobile XY Spot Welding Machine, the ultimate solution for on-demand, precision welding. This machine breaks the constraints of fixed production lines, delivering professional-grade spot welding directly where it's needed. It is engineered to maximize efficiency, reduce handling time, and boost profitability for workshops and factories specializing in wire and mesh products.
Primary Applications & Use Cases:
This machine is purpose-built for the fabrication of:
Wire Mesh & Grids: Perfect for creating welded mesh panels for construction, fencing, partitions, and shelving.
Fencing & Enclosures: Ideal for producing custom-sized fence panels, garden gates, and security enclosures.
Cages & Containers: Highly effective for manufacturing animal cages, storage containers, and industrial baskets.
Automotive Components: Suitable for producing wire forms, seat frames, and other structural components within the automotive supply chain.
General Wire Products: An asset for creating custom racks, grills, and any product requiring strong, point-welded joints.
Technical Parameters
|
power rating kVA |
230*230KVA（Could Customizable） |
|
rated voltage V |
3-phase AC380V ±10% （Could Customizable） |
|
rated load duration rate% |
50 |
|
rated frequency Hz |
50 |
|
maximum short circuit current kA |
42(5.7%) |
|
Maximum pressure N (0.5MPa air pressure) |
5000 |
|
working air pressure |
0.5~0.7MPa |
|
welding source |
duplicate supply |
|
welding current |
Process adjustment |
|
fixture travel speed |
Advance 500 mm/s |
|
actual welding size |
2000X6000mm （Could Customizable） |
|
Number of pressurization mechanisms |
20 items |
|
welding procedure |
welding by arrangement |
|
Work efficiency (one cycle welding time) |
Depends on the size of the workpiece |
|
Minimum opening × arm extension mm (spot welding position) |
|
|
Minimum opening × arm extension mm (convex weld position) |
|
|
electrode travel mm |
60--80 |
|
Cooling water flow rate L/min |
30 |
|
operational altitude |
800--900 |
|
Compression method |
pneumatic |
| Delivery Time | ||
|
Quantity (sets) |
1 - 1 |
> 1 |
|
Eastern Time in the US (days) |
15 |
To be determined |
| Customization | ||
|
Customized logo |
Minimum Order Quantity |
1 set |
|
Customized packaging |
Minimum Order Quantity |
1 set |
|
Graphic customization |
Minimum Order Quantity |
1 set |
Product Display
Product Information
|
Brand Name |
Jinchun / Xinliancheng |
|
Country of Origin |
Foshan, Guangdong, China |
|
Loading Port |
Foshan / Shenzhen / Guangzhou |
|
Payment Terms |
EXW / FOB / CIF |
product introduce
Faq
Foshan Jinchun is a technology-intensive industrial company specializing in the development of welding technology and equipment research and manufacturing, integrating scientific research, production and sales.
