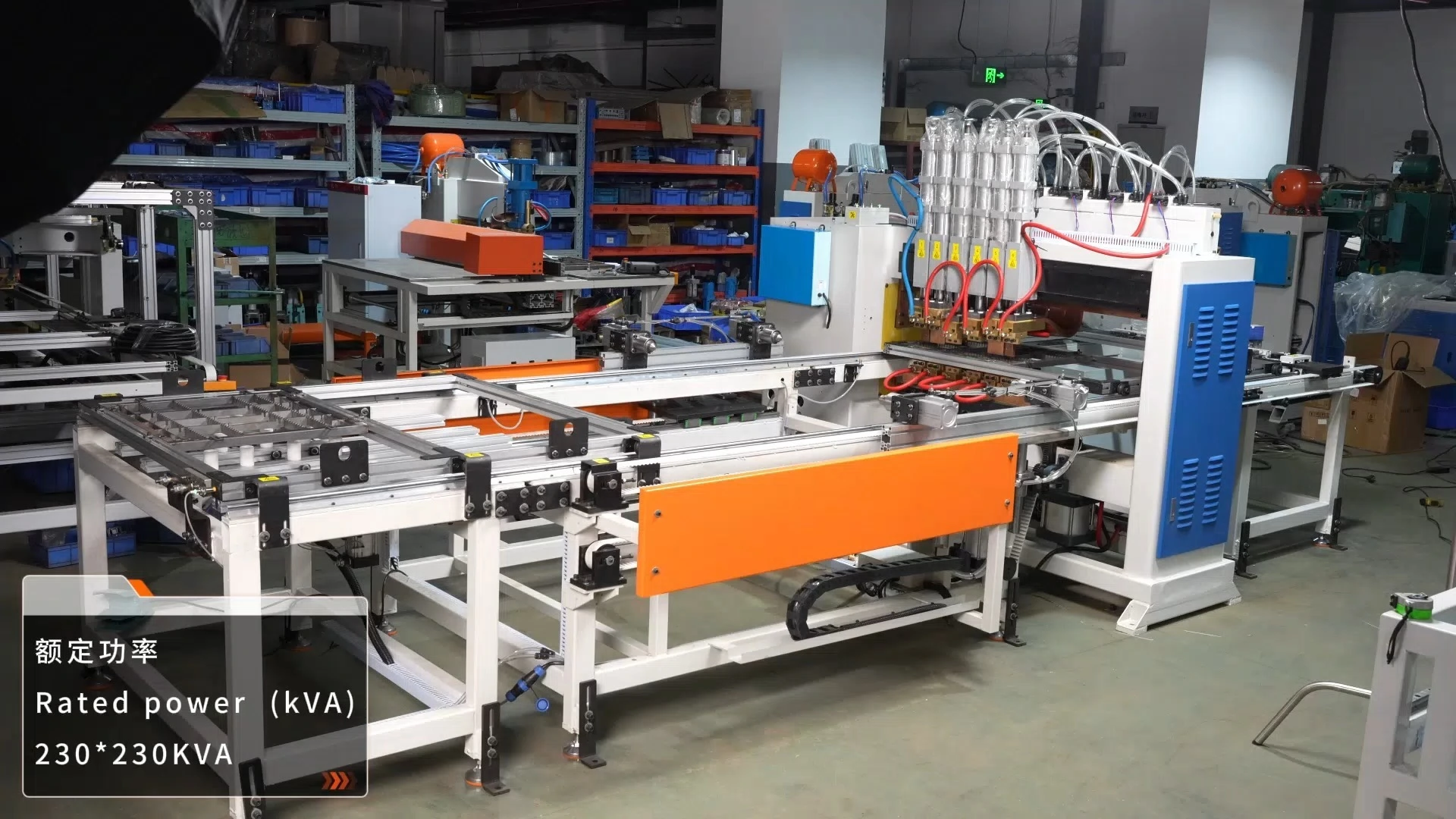

Automatic Multi-Spec Gantry Welded Wire Mesh Machine with High-Precision Forming for Shopping Cart Body Mesh & Industrial Wire Mesh Fence Production
About This Product
This machine redefines precision and scalability in wire mesh manufacturing, combining cutting-edge automation with industrial-grade durability to meet the demands of modern production lines.
Innovative Technologies:
Intelligent Control System: Touchscreen interface for program input, parameter adjustment, and storage of 32+ welding models .
Energy Efficiency: Medium frequency DC power supply reduces energy consumption by 30% compared to traditional systems .
Safety Features: CE-certified with voltage fluctuation compensation (±15%) and automatic fault alerts
Technical Parameters
|
power rating kVA |
230*230KVA（Could Customizable） |
|
rated voltage V |
3-phase AC380V ±10% （Could Customizable） |
|
rated load duration rate% |
50 |
|
rated frequency Hz |
50 |
|
maximum short circuit current kA |
42(5.7%) |
|
Maximum pressure N (0.5MPa air pressure) |
5000 |
|
working air pressure |
0.5~0.7MPa |
|
welding source |
duplicate supply |
|
welding current |
Process adjustment |
|
fixture travel speed |
Advance 500 mm/s |
|
actual welding size |
2000X6000mm （Could Customizable） |
|
Number of pressurization mechanisms |
20 items |
|
welding procedure |
welding by arrangement |
|
Work efficiency (one cycle welding time) |
Depends on the size of the workpiece |
|
Minimum opening × arm extension mm (spot welding position) |
|
|
Minimum opening × arm extension mm (convex weld position) |
|
|
electrode travel mm |
60--80 |
|
Cooling water flow rate L/min |
30 |
|
operational altitude |
800--900 |
|
Compression method |
pneumatic |
| Delivery Time | ||
|
Quantity (sets) |
1 - 1 |
> 1 |
|
Eastern Time in the US (days) |
15 |
To be determined |
| Customization | ||
|
Customized logo |
Minimum Order Quantity |
1 set |
|
Customized packaging |
Minimum Order Quantity |
1 set |
|
Graphic customization |
Minimum Order Quantity |
1 set |
Product Display
Product Information
|
Brand Name |
Jinchun / Xinliancheng |
|
Country of Origin |
Foshan, Guangdong, China |
|
Loading Port |
Foshan / Shenzhen / Guangzhou |
|
Payment Terms |
EXW / FOB / CIF |
product introduce
