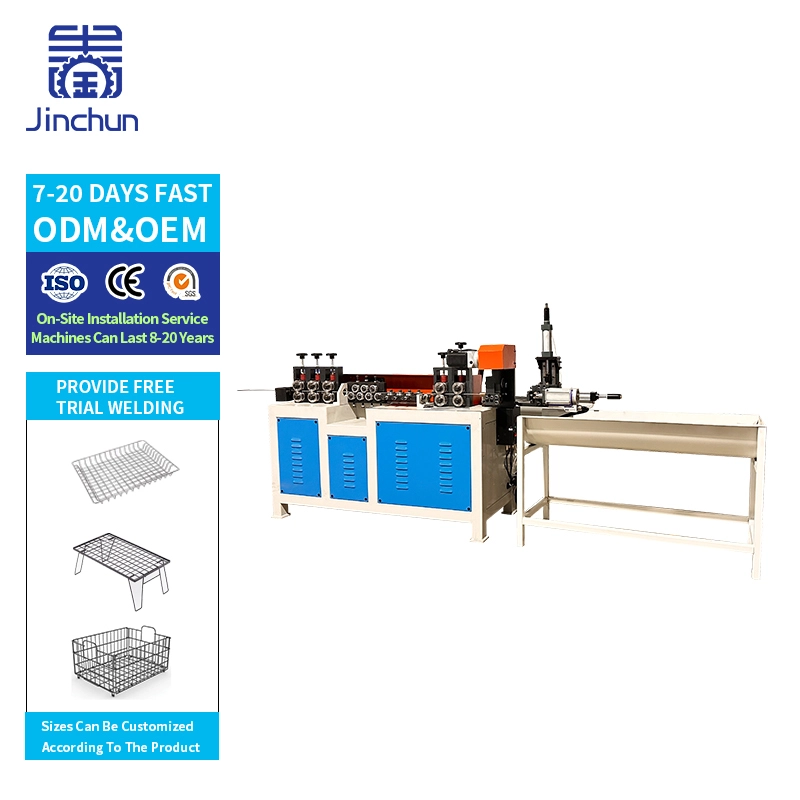

Industrial Mini Straightening Cutting And Chamfering All-In-One Machine For Wire And Fence Fabrication
This state-of-the-art Mini Straightening and Chamfering All-in-One Machine integrates high-precision straightening with automated chamfering in a compact, industrial design. Engineered for efficiency and reliability, it is ideal for processing wire, rods, and small metal components used in mesh, fencing, cages, and various wire products. The machine ensures smooth, burr-free edges and consistent straightness, enhancing product quality while reducing manual finishing time.
Featuring a user-friendly control panel, adjustable parameters, and robust construction, it supports continuous operation in manufacturing and production line environments. Suitable for workshops and industrial settings, this machine improves throughput, ensures precise cuts and chamfers, and simplifies the production of high-quality metal parts. A must-have for wire and mesh fabricators seeking to streamline their straightening and edge-finishing processes.
Key Features & Technical Highlights
The Value It Brings to Your Business
Technical parameters
| Fixed-cut Wire Straightening and Cutiing machine | |||
| Model parameters | JC-TZ-D6 | ||
| Machine model and diameter | φ1.5mm- φ3.0mm | φ2.0mm- φ6.0mm | φ2..0mm- φ8.0mm |
| Applicable wire | Steel wire/ spring steel wire/ iron wire | ||
| Cutting length | Adjustable to any length | 15mm-unlimited length | / |
| Straightening speed | About 6-35m/min, depending on the wire material, wire diameter, and cutting length, the corresponding speed needs to be adjusted |
10-20m/min | / |
| Maximum value of a batch | 1-9999999 |
||
| Length error | +- 0.5mm Error will change based on different cutting length and mode |
||
| Power supply | 380V 50/60Hz | 380V 50 | 380V 50 |
| Straightening motor power | 2.2KW-2P | 3.0kw | 5.5kw |
| Wire feeding servo motor | 1 1 0 series reducer 1 . 5 KV servo motor | 2.3KW15NM | 2.3kw |
| Cutting off servo motor | 8 0 series 0 . 7 5 KW servo motor | 1KW4.7NM | 2kw |
| Machine dimension | 1200*400*600mm | 1500*650*1400（mm） | 1700*500*1600（mm） |
| Machine weight | 150KG | 500KG | 500KG |
| Wire decoiler : Normal wire decoiler (Without power)/ Automatic wire decoiler ( The speed can be adjusted and rotate automatically) | |||
Equipment features
CNC servo motor wire rotation rotation, the wire length is consistent with the theoretical calculation length. Use frequency conversion motor to feed, lever type servo cutting, realize the feeding without stop.
