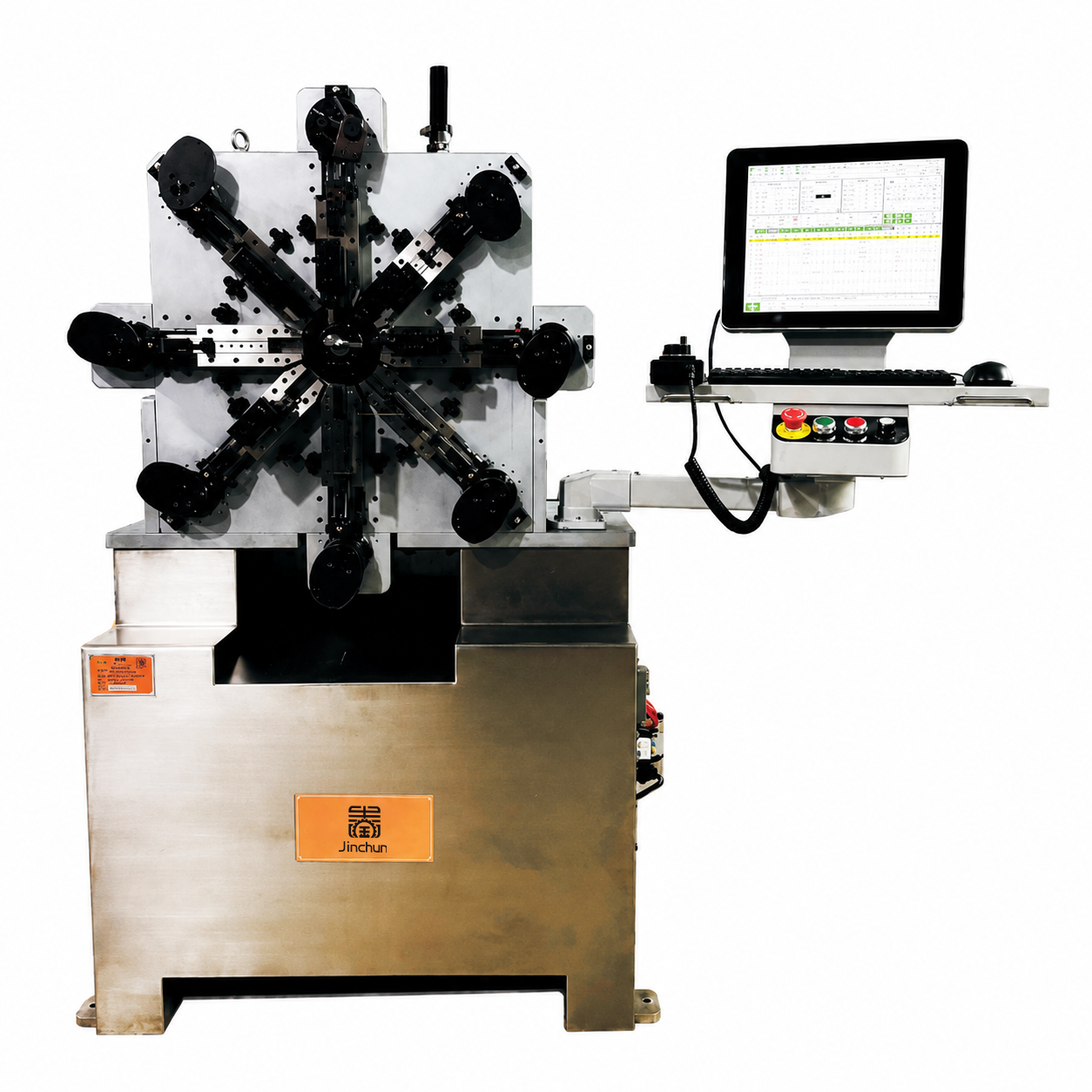

High-Precision Multi-Axis Camless Spring Forming Machine with 8 Servo Drives
Core Proposition: Master Complex Wire Geometries, Accelerate Turnaround Times
Introducing the next generation of industrial wire and spring forming. Our Multi-Axis Camless Spring Forming Machine is meticulously engineered to manufacture a vast array of hardware completely autonomously—including extension, torsion, and double torsion springs, as well as customized wire clamps, clips, and intricate metal wire badges.
By eliminating traditional cam setups and deploying an ultra-precise wire feeding mechanism driven by an $8 \times 0.75\text{kW}$ servo system, this machine ensures incredibly smooth, low-noise operations even when handling delicate wire sizes starting from 0.2mm. Featuring a highly intuitive, multi-language interface, this system is exceptionally easy to learn, making it the perfect turnkey solution for factories looking to minimize labor dependency, eliminate mechanical inconsistencies, and secure a dominant competitive edge in the global precision hardware market.
Applicable Industries
Key Details & Intelligent Functionality
This advanced camless system is designed from the ground up forseamless operation, high flexibility, and maximum runtime:
- Ultra-Precise Wire Feeding Mechanism: Optimized forprecision engineering, the highly stable feeding systemmasterfully processes fine to standard wires starting from anultra-thin 0.2mm, maintaining flawless structural accuracy.
- Multi-Language Smart Interface: The programmablecontroller features a user-friendly layout that is easy to learnin a short time. It supports Chinese (CN), English (EN) asstandard, and can be customized for Spanish, Russian,Portuguese, French, and more.
Primary Applications & Direct Impact
Designed specifically for precision electronics, automotive components, and medical hardware sectors, this machine transforms production for:
Precision Spring & Clip Manufacturers: Achieve high-speed mass production of micro or complex multi-angle springs with unmatched batch consistency.
Medical & Electronics Hardware Suppliers: Process ultra-fine wires (down to 0.2mm) in-house with surgical precision, minimizing material waste and cutting down lead times.
High-Mix, Low-Volume OEMs: Switch between entirely different spring designs and wire badges within minutes via simple software profiles, unlocking lucrative custom contract manufacturing opportunities.
Technical Parameters
|
Machine Type |
Spring Making Machine |
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
|
Processable Materials |
Stainless Steel / Copper / Aluminum |
Weight (KG) |
800 |
|
Warranty Period |
1 year |
Place of Origin |
Guangdong, China |
|
Video Inspection before Shipment |
Available |
Mechanical Test Report |
Available |
|
Brand |
Jinchun |
Automation Level |
Fully automatic |
|
Additional Function |
Fixed - length Shearing |
Core Selling Point |
High Precision |
|
Wire Diameter |
0.2 ~ 2.0 mm iron wire |
Inflection Point Length |
750MM |
|
Axis Count |
10~11 axis |
Rotation Degree |
0 ° --- 300 ° |
|
Rotation Servo Motor |
2.7Kw |
Bending Angle Servo Motor |
1Kw |
|
CNC Axle |
5 - axis |
Machine Dimensions |
800mm * 1200mm * 1800mm |
Product Introduction
Product Parameter
|
Condition |
New |
Machine Type |
Wire Drawing Machine |
|
Video Output - Inspection |
Available |
Mechanical Test Report |
Provided |
|
Marketing Type |
Regular Product |
Core Component Warranty |
1 year |
|
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
Brand Name |
Jinchun |
|
Raw Material |
Steel Bars |
Materials/Metal Processing |
Stainless Steel / Copper / Aluminum |
|
Power |
CNC (Computer Numerical Control) |
Automation |
Automatic |
|
Additional Service |
Cut to Fixed Length |
Year |
2026 |
|
Weight (kg) |
800 |
Main Selling Point |
High Precision |
|
Warranty |
1 year |
Showroom Locations |
Vietnam, Brazil, Saudi Arabia, Russia, Malaysia |
|
Wire Diameter |
0.2 ~ 2.0 mm iron wire |
Inflection Point Length |
750 mm |
