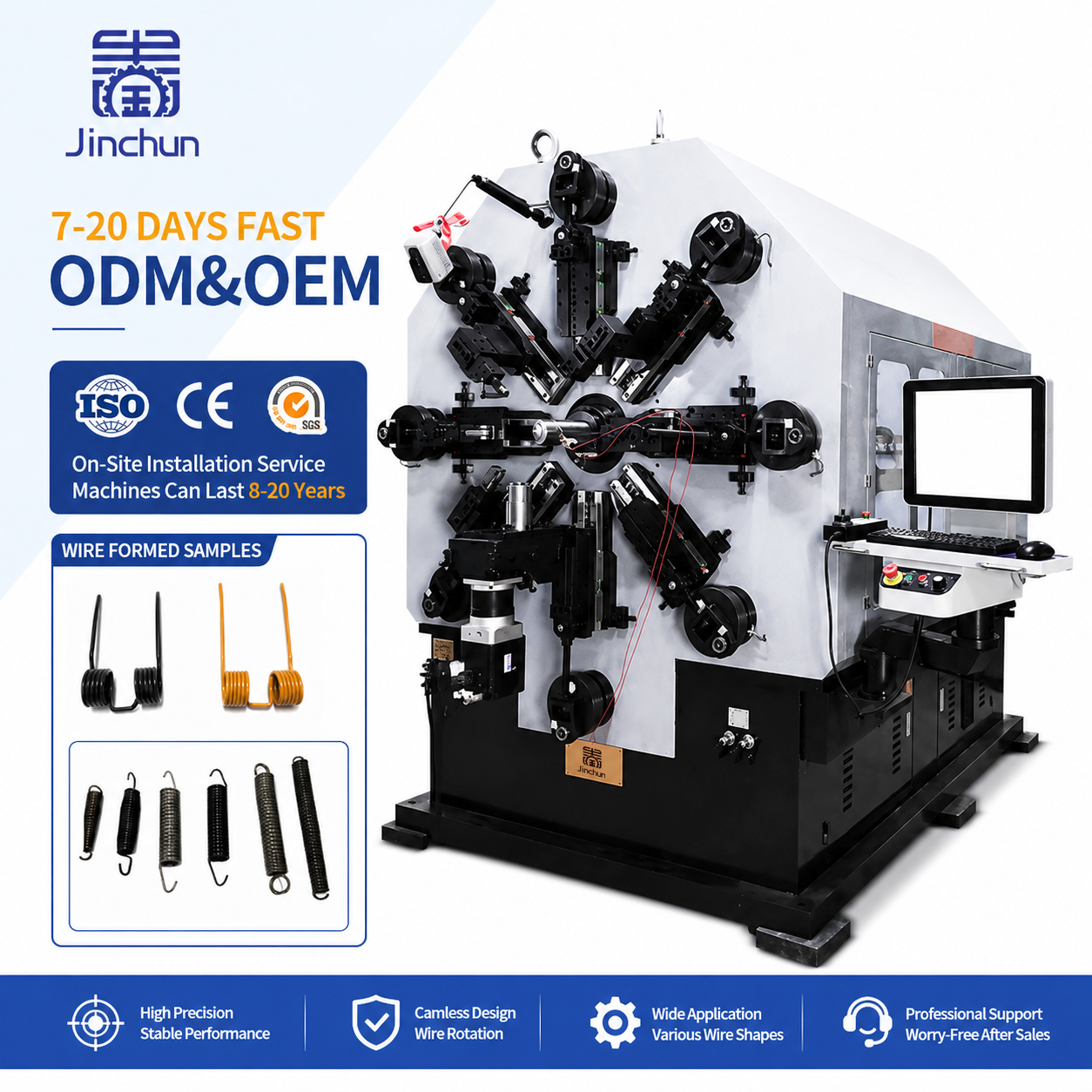

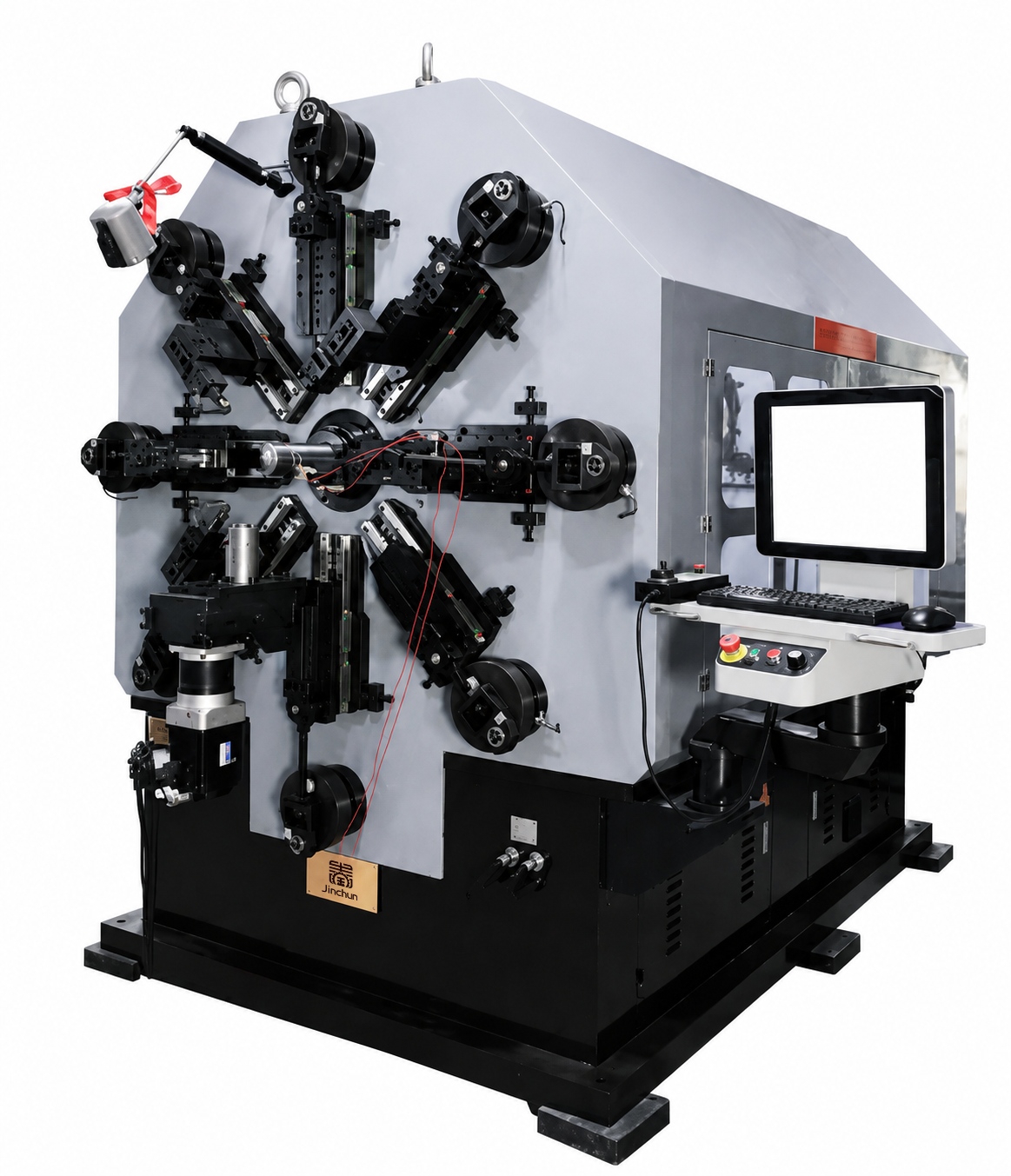

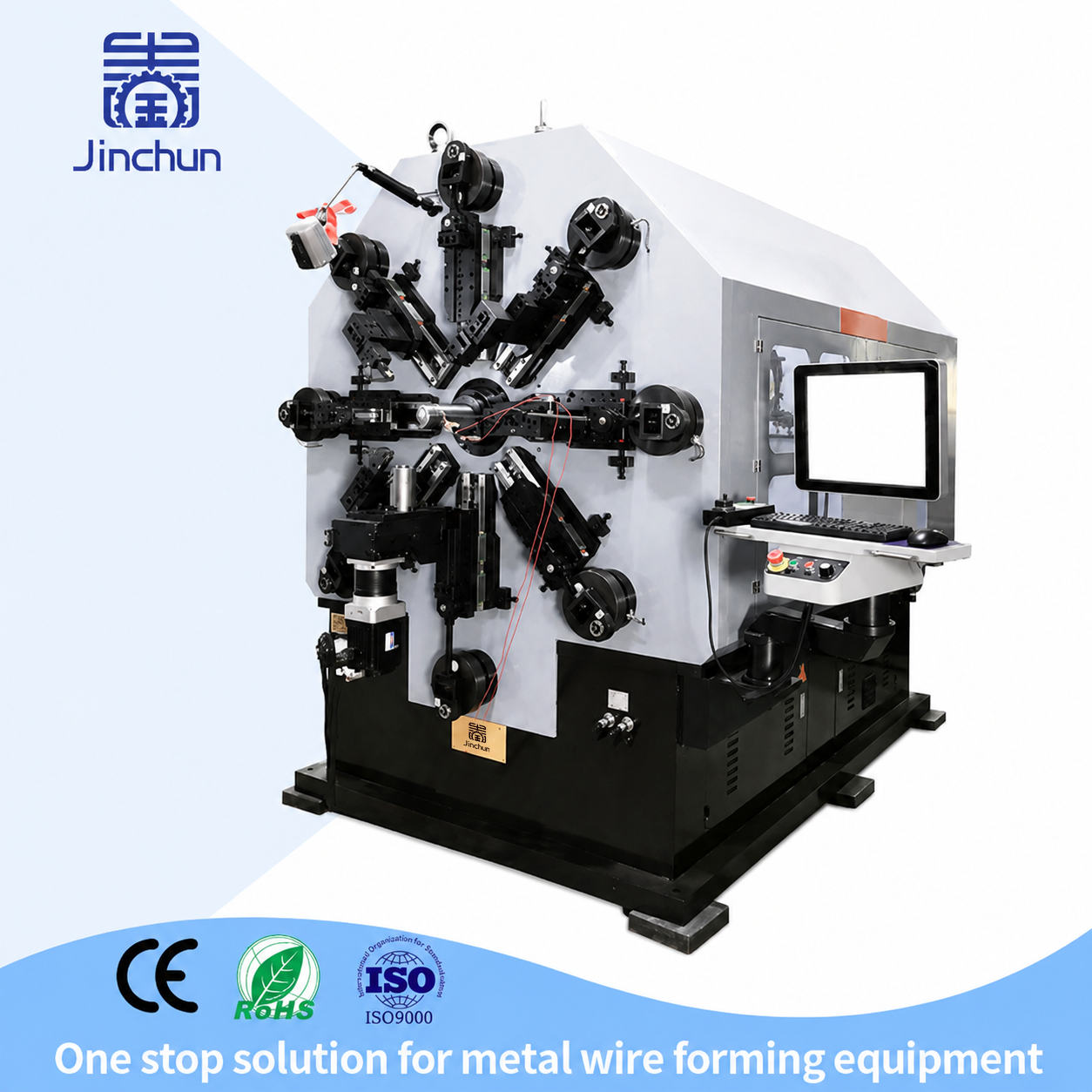

High-Precision Camless Wire Forming Machine with Wire Rotation for Complex 3D Component Production
About This Product
Key Details & Intelligent Functionality
This turnkey CNC system is built for seamless, high-efficiency operation from raw wire feed to finished part.
Advanced Camless Multi-Axis Drive: Utilizing independent servo motors for each slide arm, the machine eliminates the time-consuming process of arranging mechanical cams. Every arm can move independently or synchronously at precise angles.
Synchronized Wire Rotation Mechanism: The integrated wire rotation axis allows the wire itself to rotate 360 degrees during the forming process. This enables complex, multi-directional 3D bends without the need for overly complicated tooling setups.
Precision CNC Control & Smart UI: Equipped with an intuitive Windows-based CNC control system, operators can easily program bending parameters, adjust feeding speeds, and store hundreds of complex product profiles for instant recall.
Primary Applications & Direct Impact
Designed specifically for demanding industrial hardware and spring manufacturing sectors, this machine transforms production for:

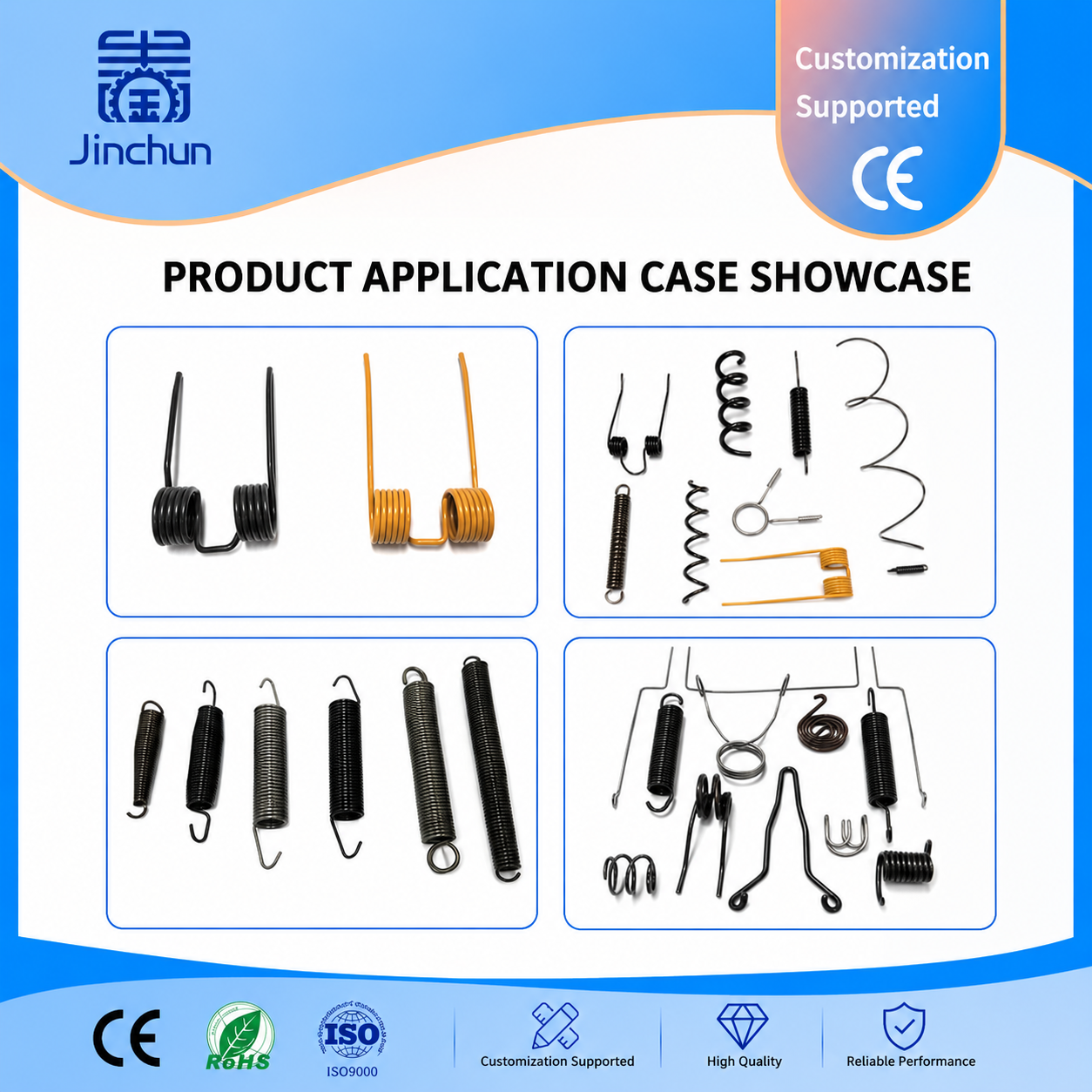

Custom Spring & Wire Form Manufacturers: Achieve rapid prototyping and seamless mass production of complex compression, extension, torsion springs, and intricate 3D wire crafts.
Automotive & Aerospace Component Suppliers: Produce high-strength, precision automotive wire components (such as seat frames, exhaust hangers, and clips) with strict adherence to tight tolerances.
Medical & Electronics Hardware Producers: Manufacture micro-wire components, precision electronic clips, and medical-grade wire devices with absolute consistency and zero-defect quality control.
Technical Parameters
|
Machine Type |
Spring and wire forming machine |
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
|
Processable Materials |
Stainless Steel / Copper / Aluminum |
Weight (KG) |
5500 |
|
Warranty Period |
1 year |
Place of Origin |
Guangdong, China |
|
Video Inspection before Shipment |
Available |
Mechanical Test Report |
Available |
|
Brand |
Jinchun |
Automation Level |
Fully automatic |
|
Additional Function |
Fixed - length Shearing |
Core Selling Point |
High Precision |
|
Wire Diameter |
3.0 -7.0mm iron wire |
Inflection Point Length |
750MM |
|
Axis Count |
12~13 axis |
Rotation Degree |
0 ° --- 300 ° |
|
Feeding Wheels |
3 sets (GB Cr12, hardness up to 58 °) |
Feeding Servo Motor |
49.5Kw |
|
CNC Axle |
5 - axis |
Machine Dimensions |
2400mm * 1900mm * 2150mm |
Product Introduction
Product Parameter
|
Condition |
New |
Machine Type |
Wire Drawing Machine |
|
Video Output - Inspection |
Available |
Mechanical Test Report |
Provided |
|
Marketing Type |
Regular Product |
Core Component Warranty |
1 year |
|
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
Brand Name |
Jinchun |
|
Raw Material |
Steel Bars |
Materials/Metal Processing |
Stainless Steel / Copper / Aluminum |
|
Power |
CNC (Computer Numerical Control) |
Automation |
Automatic |
|
Additional Service |
Cut to Fixed Length |
Year |
2026 |
|
Weight (kg) |
5500 |
Main Selling Point |
High Precision |
|
Warranty |
1 year |
Showroom Locations |
Vietnam, Brazil, Saudi Arabia, Russia, Malaysia |
