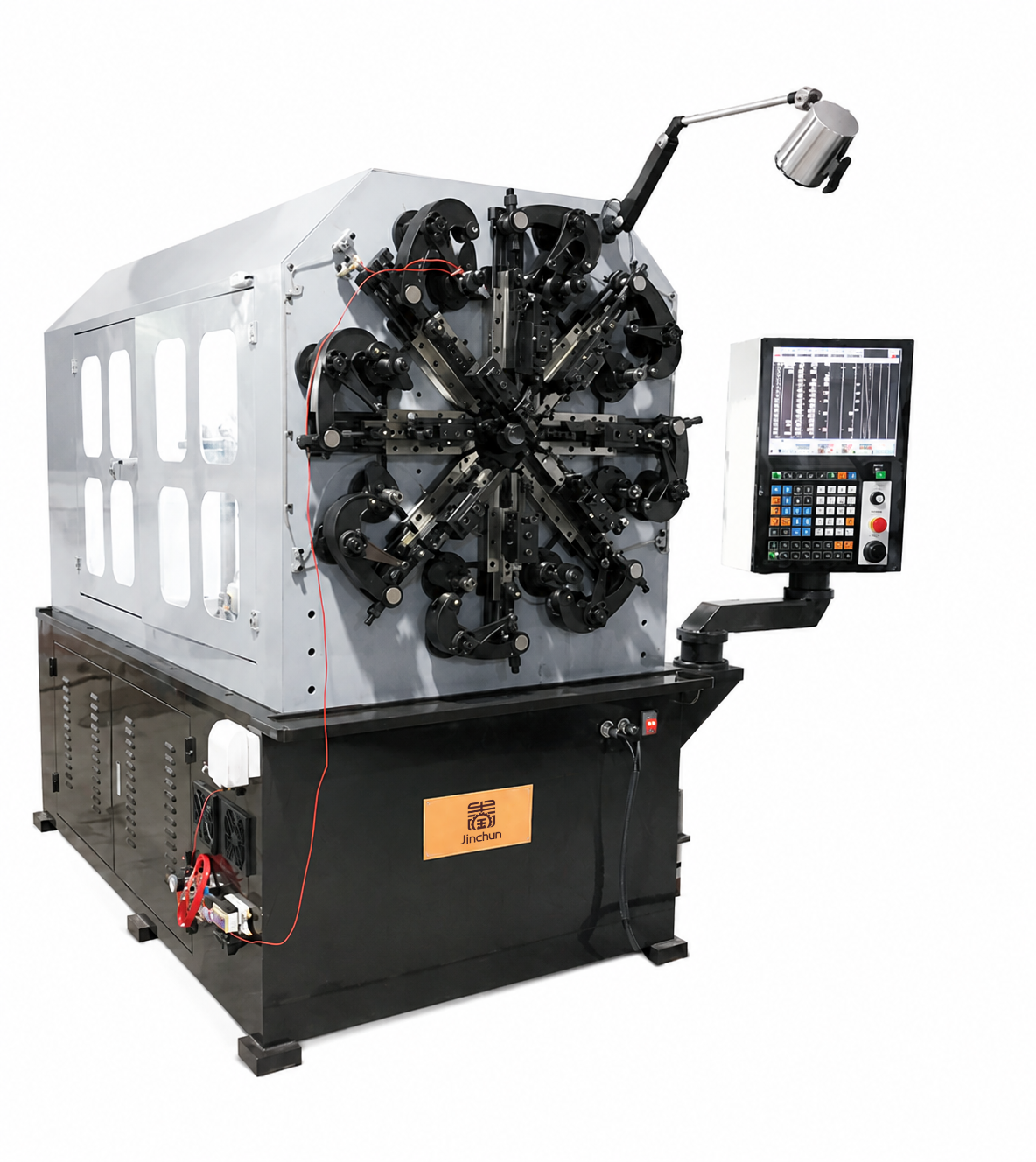

High-Precision Automatic Wire Forming Machine with Cam and 360° Wire Rotation
About This Product
Key Details & Intelligent Functionality
This turnkey manufacturing system is built for seamless, complex multi-axis forming from start to finish.
Optimized Wire Feeding Box & High Stability: Featuring an optimally sized wire feeding mechanism that precisely controls the input, guaranteeing high stability and reducing vibration even during continuous, large-scale production cycles.
360° Omnidirectional Wire Rotation: The wire can be effortlessly rotated in any direction. This unrestricted movement allows operators to set up intricate spring shapes and complex multi-plane bends without complex, time-consuming tool reconfigurations.
High-Precision Cam & Rotation Drive: Core parts driven for the wire rotation box are engineered from ultra-durable, premium alloy materials. This ensures high precision, repetitive consistency, and zero-backlash forming over millions of operating cycles.
Primary Applications & Industry Impact
Designed specifically for the spring manufacturing, automotive component, and hardware industries, this machine transforms production for:
Spring & Fastener Manufacturers: Achieve mass production of standard or custom-designed extension, compression, and torsion springs with unmatched repeatability.
Industrial Hardware Suppliers: Bring advanced wire bending in-house to strictly control tolerances, reduce reliance on external sub-contractors, and shorten lead times.
Automotive & Household Accessory Producers: Create a highly efficient, continuous production line capable of transforming raw wire spools into complex, weld-ready structural components seamlessly.
Technical Parameters
|
Machine Type |
Spring Making Machine |
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
|
Processable Materials |
Stainless Steel / Copper / Aluminum |
Weight (KG) |
3200 |
|
Warranty Period |
1 year |
Place of Origin |
Guangdong, China |
|
Video Inspection before Shipment |
Available |
Mechanical Test Report |
Available |
|
Brand |
Jinchun |
Automation Level |
Fully automatic |
|
Additional Function |
Fixed - length Shearing |
Core Selling Point |
High Precision |
|
Wire Diameter |
1.2 - 4.0mm iron wire |
Inflection Point Length |
750MM |
|
Axis Count |
5axis |
Rotation Degree |
0 ° --- 300 ° |
|
Feeding Wheels |
3 sets (GB Cr12, hardness up to 58 °) |
Feeding Servo Motor |
2.7Kw |
|
Total Power |
16Kw |
Bending Angle Servo Motor |
1Kw |
|
CNC Axle |
5 - axis |
Machine Dimensions |
1650mm * 2080mm * 1950mm |
Product Introduction
Product Parameter
|
Condition |
New |
Machine Type |
Spring Making Machine |
|
Video Output - Inspection |
Available |
Mechanical Test Report |
Provided |
|
Marketing Type |
Regular Product |
Core Component Warranty |
1 year |
|
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
Brand Name |
Jinchun |
|
Raw Material |
Steel Bars |
Materials/Metal Processing |
Stainless Steel / Copper / Aluminum |
|
Power |
CNC (Computer Numerical Control) |
Automation |
Automatic |
|
Additional Service |
Cut to Fixed Length |
Year |
2026 |
|
Weight (kg) |
3200 |
Main Selling Point |
High Precision |
|
Warranty |
1 year |
Showroom Locations |
Vietnam, Brazil, Saudi Arabia, Russia, Malaysia |
|
Wire Diameter |
1.2 - 4.0 mm iron wire |
Inflection Point Length |
750 mm |
