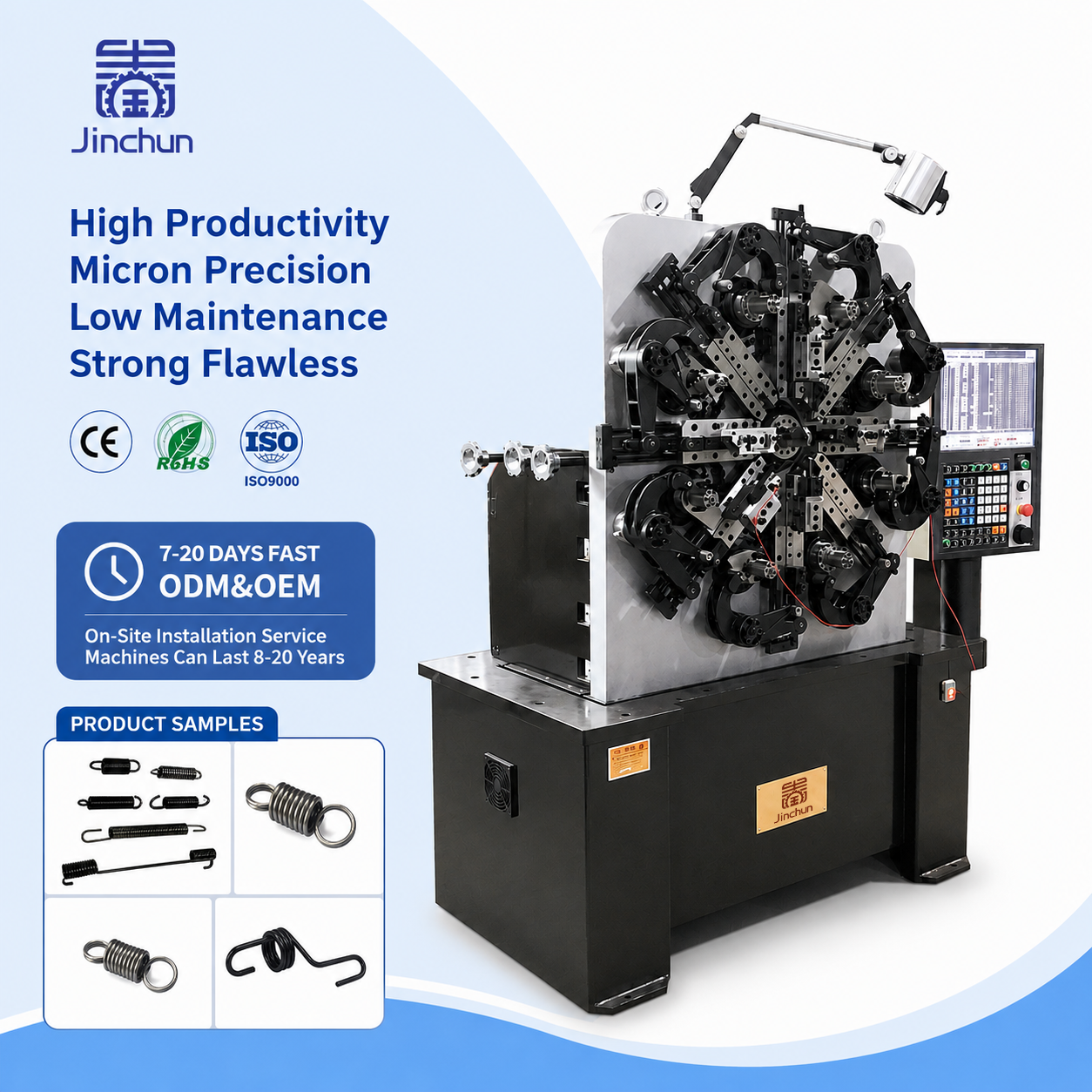

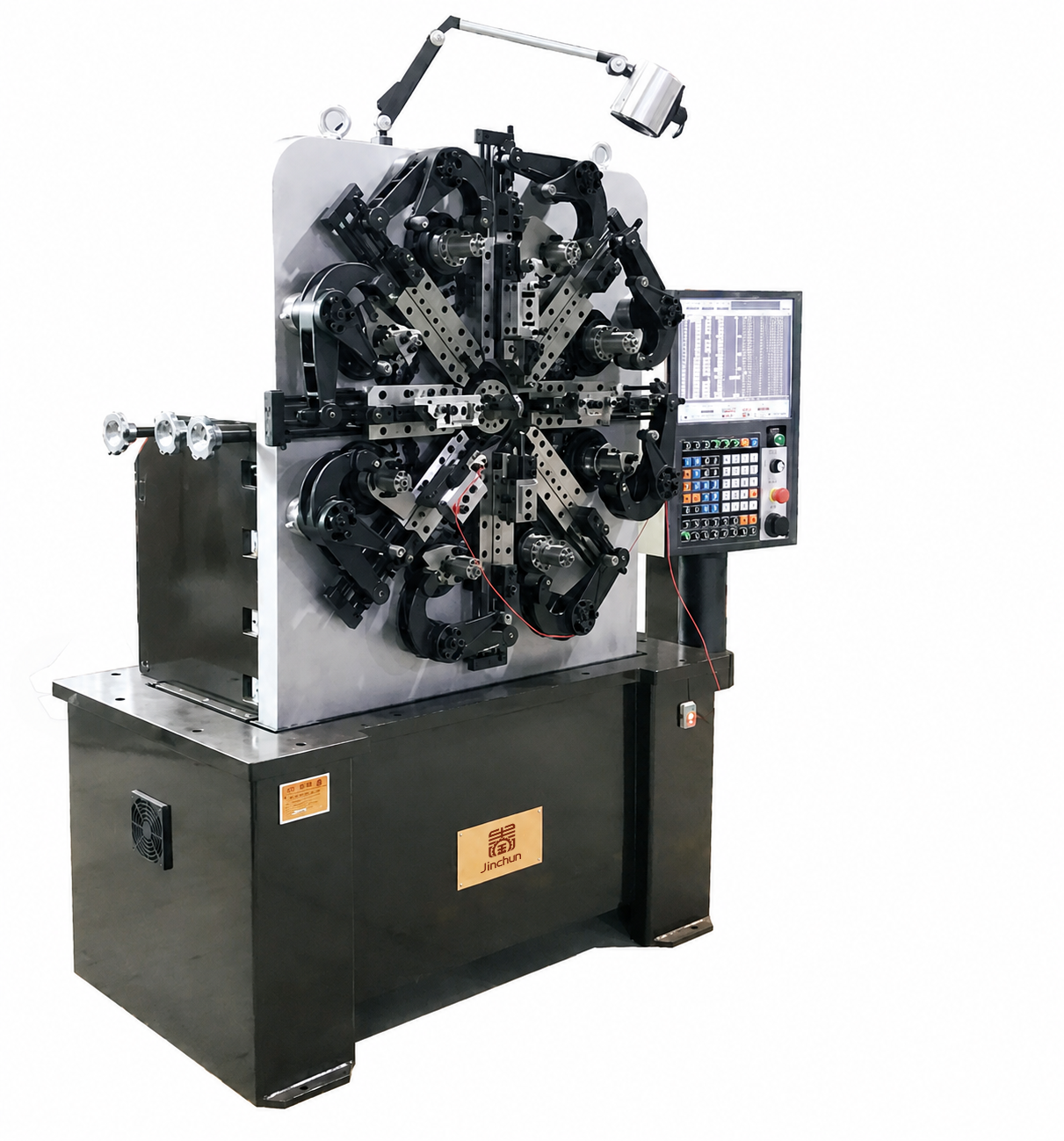

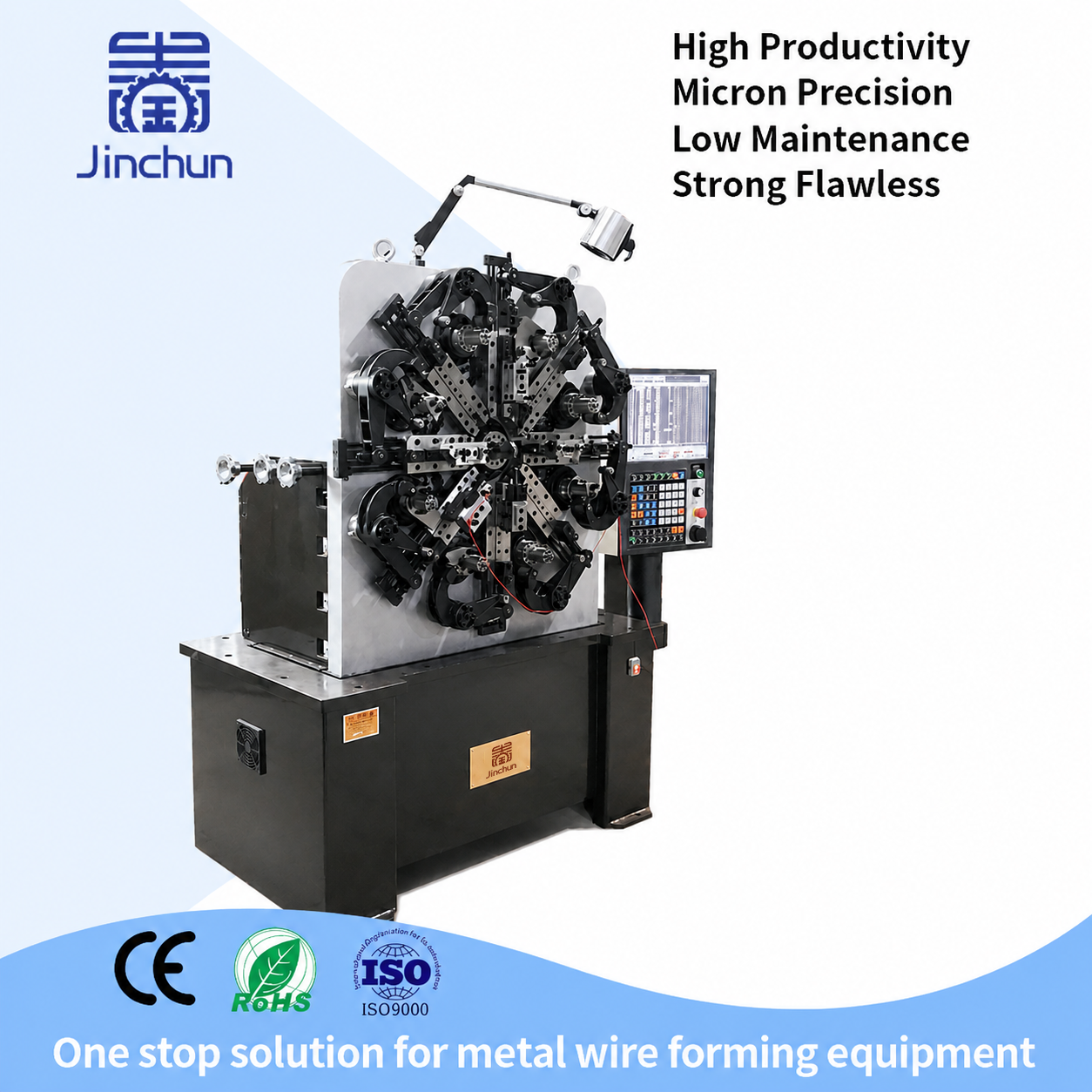

High-Precision 3~4 Axes CNC Versatile Spring Coiling Machine for Smart and Efficient Production
About This Product
Key Details & Intelligent Functionality
This advanced CNC system is built for seamless, automated operation from raw wire to finished precision component:
Patented High-Precision Wire Feeding: Equipped with a special China Utility Model Patent wire feeding system that minimizes vibration, ensuring excellent, ultra-stable precision accurate to within 0.2mm.
3~4 Axes Synchronous Control: Allows independent or synchronized movement for highly complex bending, coiling, and customized particular shapes without sacrificing speed.
Smart On-Site Programming Interface: Features a user-friendly machine interface allowing easy, immediate programming in place. The system software is fully future-proof and can be easily updated via integrated USB and RS232 ports.
Primary Applications & Direct Impact
Designed specifically for the precision hardware, automotive, and industrial manufacturing industries, this machine transforms production for:

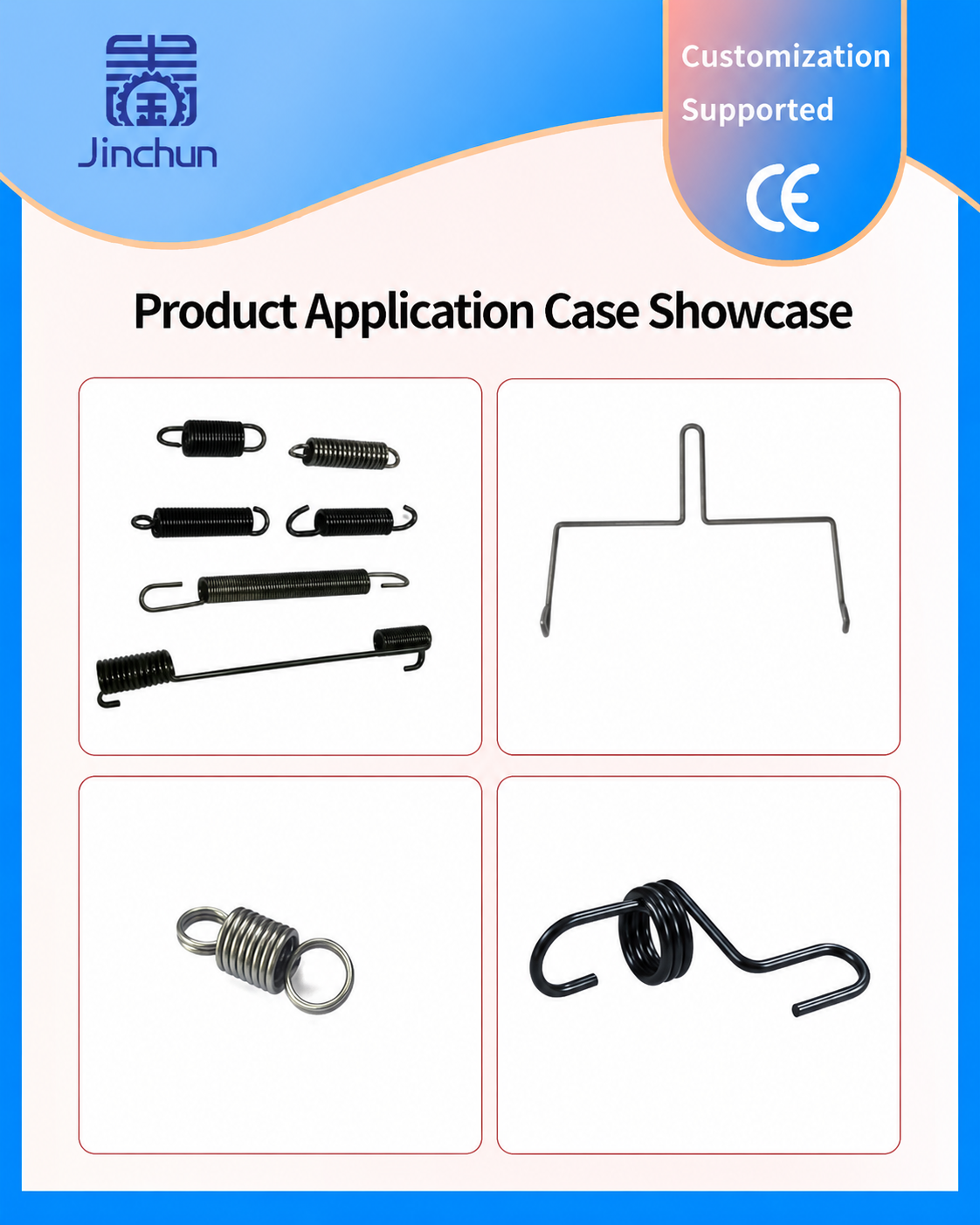

Versatile Spring Manufacturers: Achieve mass production of standard or highly complex custom springs (compression, extension, torsion, double torsion, and wire forms) with unmatched batch-to-batch consistency.
In-House Hardware & Component Suppliers: Bring specialized spring manufacturing in-house to gain total control over quality, shorten lead times, and eliminate external supplier dependencies.
Custom Wire-Forming Workshops: Rapidly switch between different spring designs and particular shapes thanks to flexible programming, perfect for catering to low-volume, high-mix custom orders efficiently.
Technical Parameters
|
Machine Type |
CNC Versatile Spring Coiling Machine |
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
|
Processable Materials |
Stainless Steel / Copper / Aluminum |
Weight (KG) |
1800 |
|
Warranty Period |
1 year |
Place of Origin |
Guangdong, China |
|
Video Inspection before Shipment |
Available |
Mechanical Test Report |
Available |
|
Brand |
Jinchun |
Automation Level |
Fully automatic |
|
Additional Function |
Fixed - length Shearing |
Core Selling Point |
High Precision |
|
Wire Diameter |
0.8 - 3.5 mm iron wire |
Inflection Point Length |
750MM |
|
Axis Count |
3~4 axis |
Rotation Degree |
0 ° --- 300 ° |
|
Feeding Wheels |
3 sets (GB Cr12, hardness up to 58 °) |
Feeding Servo Motor |
2.7Kw |
|
Rotation Servo Motor |
2.7Kw |
Bending Angle Servo Motor |
1Kw |
|
CNC Axle |
5 - axis |
Machine Dimensions |
1350mm * 770mm * 1800mm |
Product Introduction
Product Parameter
|
Condition |
New |
Machine Type |
Wire Drawing Machine |
|
Video Output - Inspection |
Available |
Mechanical Test Report |
Provided |
|
Marketing Type |
Regular Product |
Core Component Warranty |
1 year |
|
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
Brand Name |
Jinchun |
|
Raw Material |
Steel Bars |
Materials/Metal Processing |
Stainless Steel / Copper / Aluminum |
|
Power |
CNC (Computer Numerical Control) |
Automation |
Automatic |
|
Additional Service |
Cut to Fixed Length |
Year |
2026 |
|
Weight (kg) |
1800 |
Main Selling Point |
High Precision |
|
Warranty |
1 year |
Showroom Locations |
Vietnam, Brazil, Saudi Arabia, Russia, Malaysia |
|
Wire Diameter |
2 - 6 mm iron wire |
Inflection Point Length |
750 mm |
|
Rotating Servo Motor |
2.7 kW |
Bending Angle Servo Motor |
1 kW |
Product Package
