Precision Stainless Steel Iron Wire Welding Machine - CE Approved for Industrial Grill Cover Fabrication
About This Product

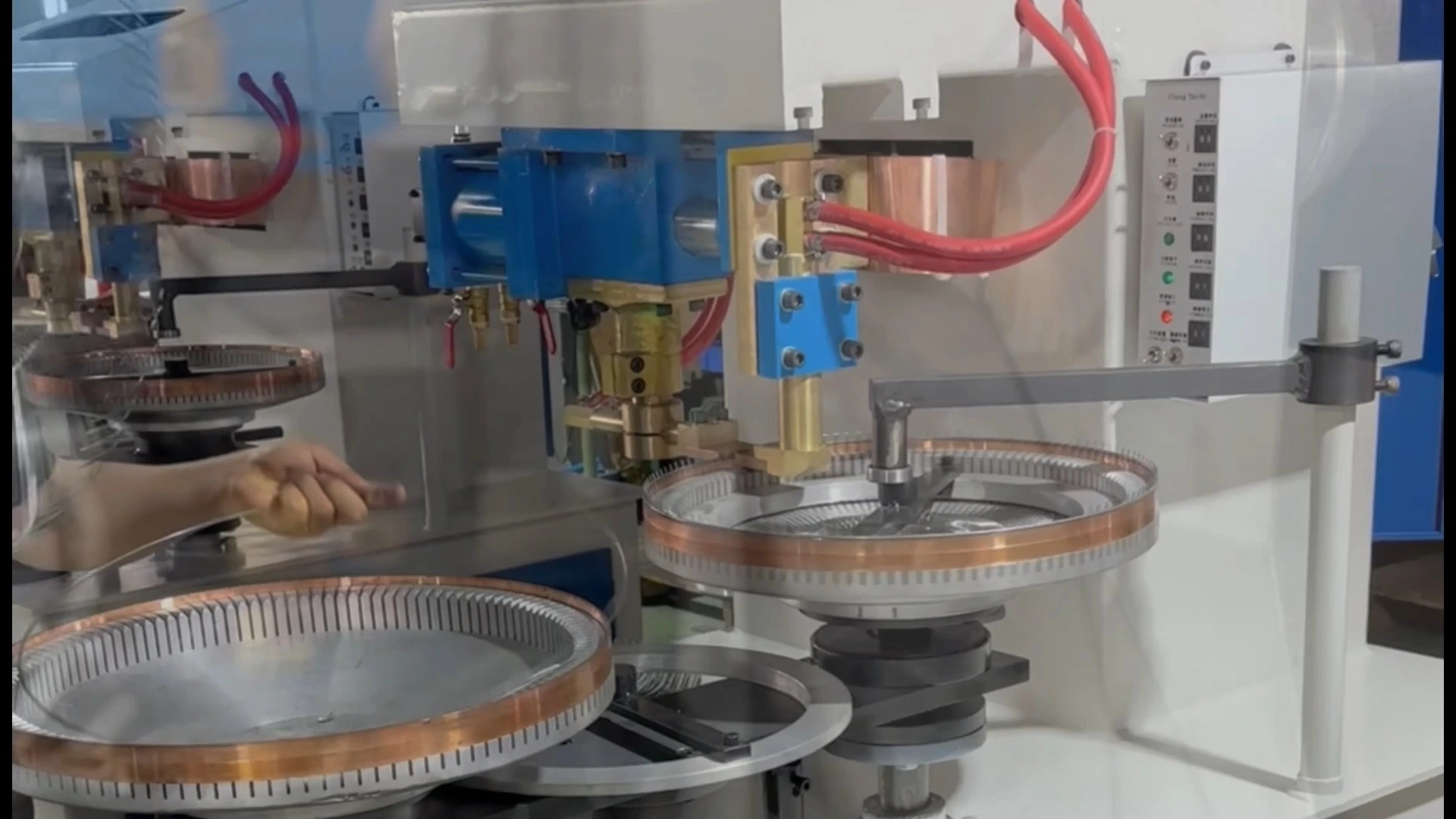

JinChun Fan Guard Mesh Outer Ring Spot Welding Machine
An intelligent equipment specifically engineered for precision welding of outer reinforcing rings and mesh wires on metal grilles. Designed for industrial-grade applications, this machine delivers ±0.1mm welding accuracy and achieves a daily output of 2,000 units (based on 16-inch mesh covers), significantly enhancing production efficiency and product consistency.
Core Features
1. Dual Closed-Loop Current Control System
• Ensures stable current output with automatic compensation for voltage fluctuations (±15% tolerance)
• Minimizes spatter and eliminates weak welds through real-time current regulation
2. Modular Mold Design
• Supports 10-second mold replacement for 8"-20" mesh covers
• Compatible with custom-shaped grilles (e.g., hexagonal, oval)
3. High-Performance Components
• Water-cooled thyristor system for continuous operation at ≤15℃ temperature rise
• Electromagnetic stainless steel electrodes with 35% energy efficiency improvement
Technical Parameters
|
Voltage |
380V |
Type |
Automatic Outer Ring Welding Machine for Fan Guard |
|
Warranty Period |
1 year |
Weight (KG) |
450 |
|
Place of Origin |
Guangdong, China |
Electric Current |
AC Resistance |
|
Current |
30-40A |
Usage |
Welding of Fan Guard/Bird Cage |
|
Brand |
JCXLC |
Electrode Stroke |
Vertical |
|
Conductive Way |
Both-Sided |
Type |
Universal |
|
Rated Frequency (Hz) |
50Hz |
Welding Spot Number |
Double |
|
Shift output |
2000pcs |
Application |
Cookware, Hardware,Household Appliances |
|
Air Consumption |
Above 0.5Mpa |
Size |
1650*900*1600mm |
|
CNC Axle |
9 - axis |
Machine Dimensions |
3500mm * 1700mm * 1400mm |
| Delivery Time | ||
|
Quantity (sets) |
1 - 1 |
> 1 |
|
Eastern Time in the US (days) |
15 |
To be determined |
| Customization | ||
|
Customized logo |
Minimum Order Quantity |
1 set |
|
Customized packaging |
Minimum Order Quantity |
1 set |
|
Graphic customization |
Minimum Order Quantity |
1 set |
Product Display
Product Information
|
Brand Name |
Jinchun / Xinliancheng |
|
Country of Origin |
Foshan, Guangdong, China |
|
Loading Port |
Foshan / Shenzhen / Guangzhou |
|
Payment Terms |
EXW / FOB / CIF |
product introduce
