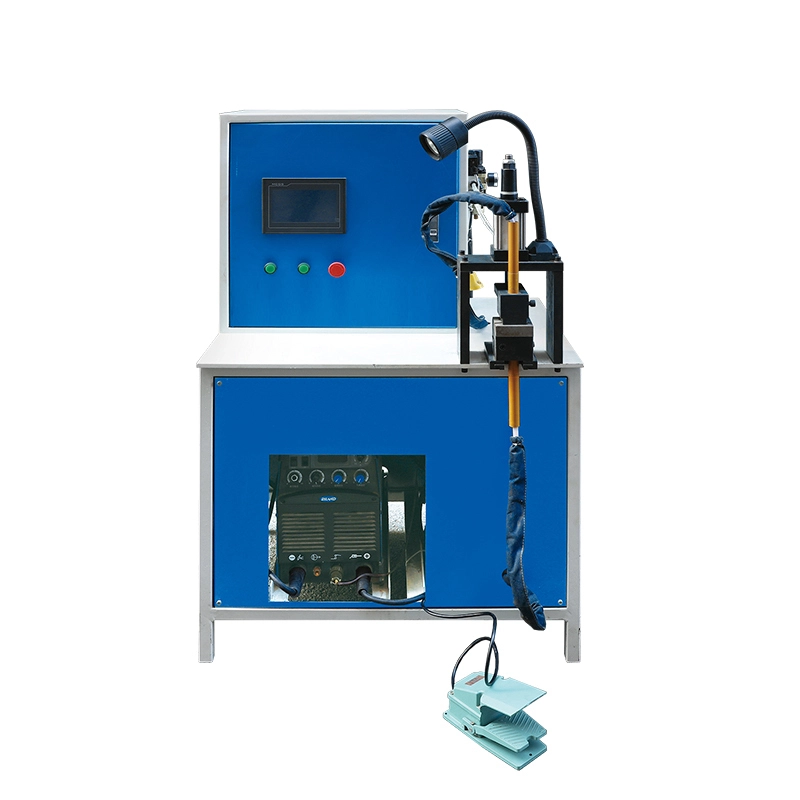

IGBT CNC Welder DC TIG MMA Inverter Argon Arc Welding Machine with work platform
Key features of a TIG welder include adjustable amperage control, pulse welding capabilities, and AC/DC welding options for different types of materials. Additionally, TIG welders often come equipped with advanced features such as high-frequency start, post-flow gas regulation, and foot pedal control for precise welding manipulation.
Product Description
A Tungsten Inert Gas (TIG) welder, also known as Gas Tungsten Arc Welding (GTAW) machine, is a specialized welding equipment widely used in various industries for high-quality and precision welding.
A TIG welder operates by creating an arc between a non-consumable tungsten electrode and the workpiece, while an inert gas shield (such as argon) is used to protect the weld area from atmospheric contamination. This process allows for precise control over the heat input, arc length, and welding speed, resulting in clean and high-quality welds with minimal distortion and spatter.
TIG welding is suitable for welding a wide range of materials, including stainless steel, aluminum, copper, and titanium, making it a versatile choice for various applications in industries such as aerospace, automotive, and fabrication.
Key features of a TIG welder include adjustable amperage control, pulse welding capabilities, and AC/DC welding options for different types of materials. Additionally, TIG welders often come equipped with advanced features such as high-frequency start, post-flow gas regulation, and foot pedal control for precise welding manipulation.
Overall, a TIG welding machine is essential for achieving high-quality welds, excellent control over the welding process, and the ability to work with a variety of materials, making it a valuable tool for professional welders and fabricators.
Technical parameters
|
Item |
Value |
|
Material／Metal Processed |
Carbon steel, Stainless steel |
|
Rated lnput Voltage |
220V |
|
Max. Load Power Capacity |
4.4KVA TIG 6.6KVA MMA |
|
Output Polarity |
AC/DC TIG |
|
Rated Duty Cycle @40℃ (TIG) |
60% |
|
Rated Output Current (TIG) |
15-160A |
|
Rated Output Voltage (TIG) |
77V |
|
Welding Current/Voltage Range |
15-160A |
|
Condition |
New |
|
Place Of Origin |
China |
|
Brand Name |
Xindacheng |
|
Motor Type |
DC MOTOR |
|
Usage |
mo repairing/welding |
|
Warranty |
1 Year |
|
Key Selling Points |
Easy tO Operate |
|
Weight (KG) |
220KG |
|
Applicable lndustries |
Building Material Shops, Machinery Repair Shops, Construction works |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Feature |
Wire Feeder |
|
Power frequency |
5/60 |
|
Phrase |
1 |
|
lnput current A |
20TIG 30MIMA |
|
lnput power KVA |
4.4TIG 6.6MIMA |
|
Floating voltage V |
77 |
|
Post flow time S |
1-9.9 |
|
Arcing current A |
0-50 |
|
IP grade |
IP21S |
|
lnsulation grade |
F |
|
Cooling way |
Air cooling |
