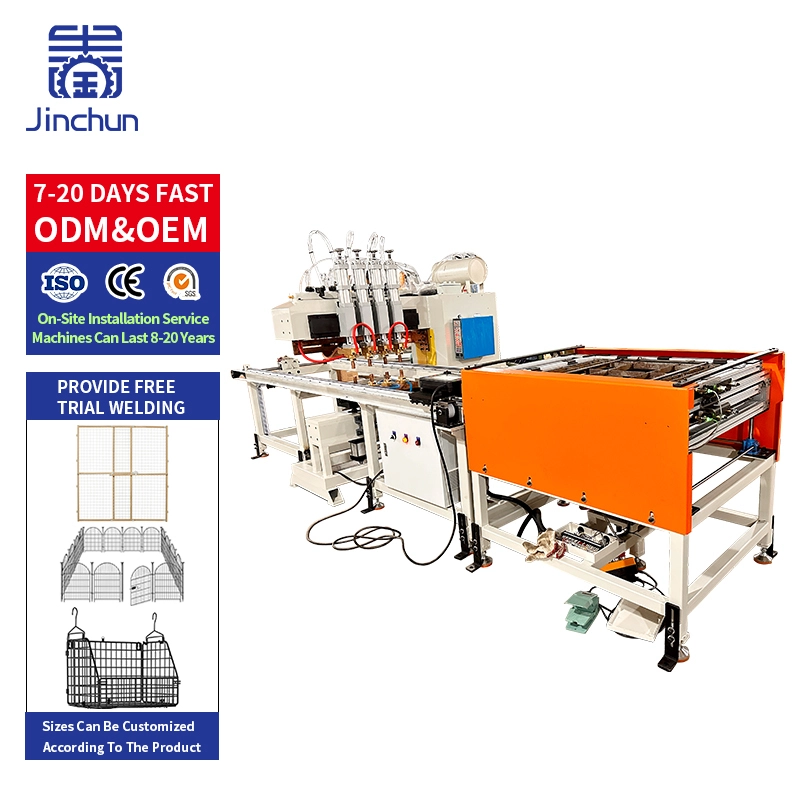

Automatic 4 Cylinder Gantry Spot Welder, Multi-Point Mesh Welding Machine for Steel Wire
Product Description: Four-Cylinder Gantry Spot Welding Machine
Headline: Revolutionize Your Production with Our Precision Four-Cylinder Gantry Spot Welding Machine
Sub-headline: An Automated, High-Speed Solution for Mass Production of Wire Mesh, Grills, and Metal Fabrications.
Our Four-Cylinder Gantry Spot Welding Machine represents the pinnacle of efficiency and reliability in automated industrial welding. Designed for demanding manufacturing environments, this heavy-duty system combines a robust gantry structure with a powerful four-cylinder drive mechanism to deliver unmatched consistency, speed, and weld quality. Ideal for the high-volume production of reinforcement mesh, fencing, shelving, automotive parts, and various metal frameworks, this machine is engineered to boost your productivity and reduce operational costs.
About This Product
This machine redefines precision and scalability in wire mesh manufacturing, combining cutting-edge automation with industrial-grade durability to meet the demands of modern production lines.
Applications:
Reinforcing Mesh & Concrete Wire Mesh Panels
Welded Wire Fencing, Cages (Bird Cages, Animal Cages), and Partitions
Shelf Grids, Racks, and Storage Solutions
Automotive Seat Frames, Exhaust Grills, and Other Components
General Metal Grids and Framework for Furniture and Construction
Why Choose Our Machine?
We specialize in manufacturing robust and intelligent welding solutions. Our Four-Cylinder Gantry Welder is not just a machine; it's a strategic investment in your factory's future productivity and profitability. We provide comprehensive support, including installation guidance, operator training, and reliable after-sales service.
Ready to upgrade your production line? Contact us today for a detailed quotation and a custom solution tailored to your specific needs!
Technical Parameters
|
power rating kVA |
230*230KVA（Could Customizable） |
|
rated voltage V |
3-phase AC380V ±10% （Could Customizable） |
|
rated load duration rate% |
50 |
|
rated frequency Hz |
50 |
|
maximum short circuit current kA |
42(5.7%) |
|
Maximum pressure N (0.5MPa air pressure) |
5000 |
|
working air pressure |
0.5~0.7MPa |
|
welding source |
duplicate supply |
|
welding current |
Process adjustment |
|
fixture travel speed |
Advance 500 mm/s |
|
actual welding size |
2000X6000mm （Could Customizable） |
|
Number of pressurization mechanisms |
20 items |
|
welding procedure |
welding by arrangement |
|
Work efficiency (one cycle welding time) |
Depends on the size of the workpiece |
|
Minimum opening × arm extension mm (spot welding position) |
|
|
Minimum opening × arm extension mm (convex weld position) |
|
|
electrode travel mm |
60--80 |
|
Cooling water flow rate L/min |
30 |
|
operational altitude |
800--900 |
|
Compression method |
pneumatic |
| Delivery Time | ||
|
Quantity (sets) |
1 - 1 |
> 1 |
|
Eastern Time in the US (days) |
15 |
To be determined |
| Customization | ||
|
Customized logo |
Minimum Order Quantity |
1 set |
|
Customized packaging |
Minimum Order Quantity |
1 set |
|
Graphic customization |
Minimum Order Quantity |
1 set |
Product Display
Product Information
|
Brand Name |
Jinchun / Xinliancheng |
|
Country of Origin |
Foshan, Guangdong, China |
|
Loading Port |
Foshan / Shenzhen / Guangzhou |
|
Payment Terms |
EXW / FOB / CIF |
