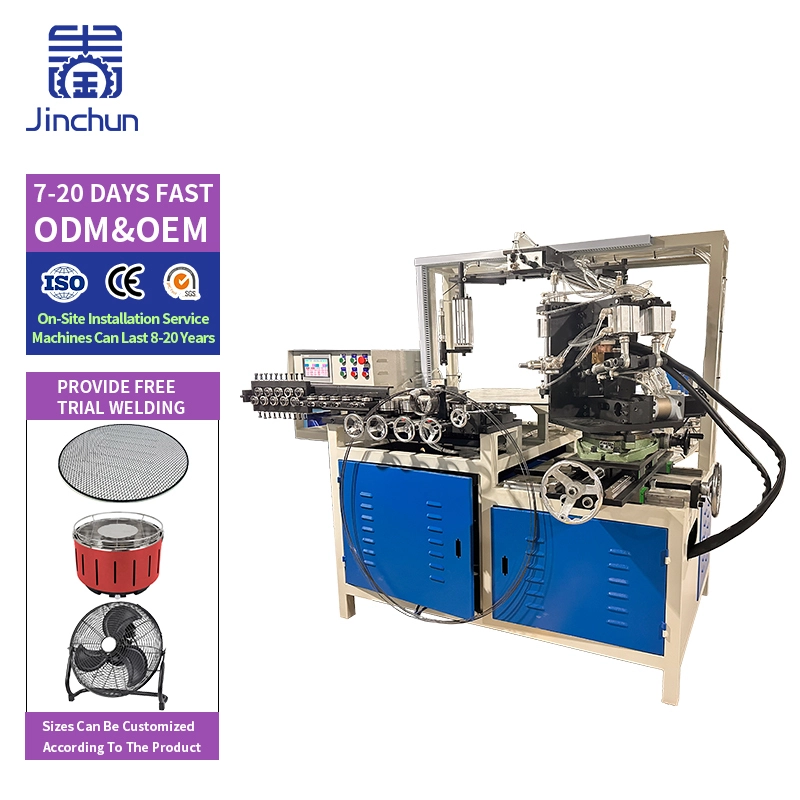

Professional Horizontal Wire Ring Forming and Welding Machine Indudtry Equipment

Professional Horizontal Wire Ring Making and Welding Machine Custom Large Metal Circle Disc

Sturdy Gantry Frame: Built from high-grade structural steel, the rigid dual-beam gantry provides exceptional stability and minimizes vibration during operation, which is critical for weld seam consistency.
Twin Hydraulic Cylinder System: The defining feature of this machine. Two synchronized hydraulic cylinders control the vertical travel of the welding torch assembly, ensuring perfectly parallel and stable lifting/lowering. This dual-cylinder design eliminates the risk of torch tilt or wobble, a common issue in single-cylinder systems.
Precision Travel Carriage: The welding torch is mounted on a motorized carriage that moves smoothly along the gantry beam (X-axis) on linear guides. Speed is digitally adjustable for precise control over the welding process.
Flexible Worktable: Designed to accommodate large and long workpieces, such as I-beams, H-beams, box girders, and large plates. The machine can be customized with fixed tables, roller supports, or adjustable clamps to suit your specific production needs.
User-Friendly Control Panel: A centralized CNC or PLC-based control system allows operators to easily set welding parameters (speed, dwell time), program simple sequences, and manage the machine's movements.

Product Description

All-in-One Productivity: Eliminates the need for separate coiling and welding stations, reducing material handling, labor costs, and floor space by up to 40%.
Superior Weld Integrity: The integrated process ensures perfect alignment of ring ends before welding, resulting in stronger, more consistent welds that are critical for load-bearing products like cages and fences.
Exceptional Precision & Consistency: CNC-controlled servo motors govern the feed length, coiling diameter, and welding parameters, guaranteeing that every ring is identical—essential for automated assembly of mesh panels.
Robust & Low-Maintenance Design: Built with industrial-grade components, the machine is designed for continuous 24/7 operation in demanding workshop environments, minimizing downtime.
Remarkable Flexibility: Easily adjustable for different wire diameters, ring sizes, and materials. The system can be quickly retooled for new production runs, making it ideal for both high-volume batches and custom orders.
Significant ROI & Fast Payback: Dramatically increases output per operator, reduces energy consumption compared to running two separate machines, and minimizes scrap from handling errors, leading to a rapid return on investment.

Technical parameters

2-6 full servo-coil butt welding machine parameters 25~550
Servo wire transmission motor	2.6KW / 3000 rpm (home-made)
Servo cut off motor	1.0KW (domestic made)
Send line speed
Send line speed	35 m / min
Production rate	10-20 / min (80 diameter, larger, slower)
Ring diameter	25mm-550mm (3mm diameter above 400)
	2-2.5mm Ring diameter range of 25-300
	3-4mm diameter range 30-400
	4-5mm diameter range 40-400
	6mm diameter range 55-400
Ring line diameter	2mm-6mm(Low-carbon steel)
Circumference tolerance	土0.2
The diameter tolerance of the ring	0.5mm
Flatness	Less than 0.5mm
Input voltage	380V
Welding power	50KVA
Cyclic duration factor	50%
Compressed air pressure	0.6MPa
Cooling water flow	50L/min
Overall dimensions of the equipment (length * width * height) (mm)	240014501500
Gross weight of equipment	800KG
