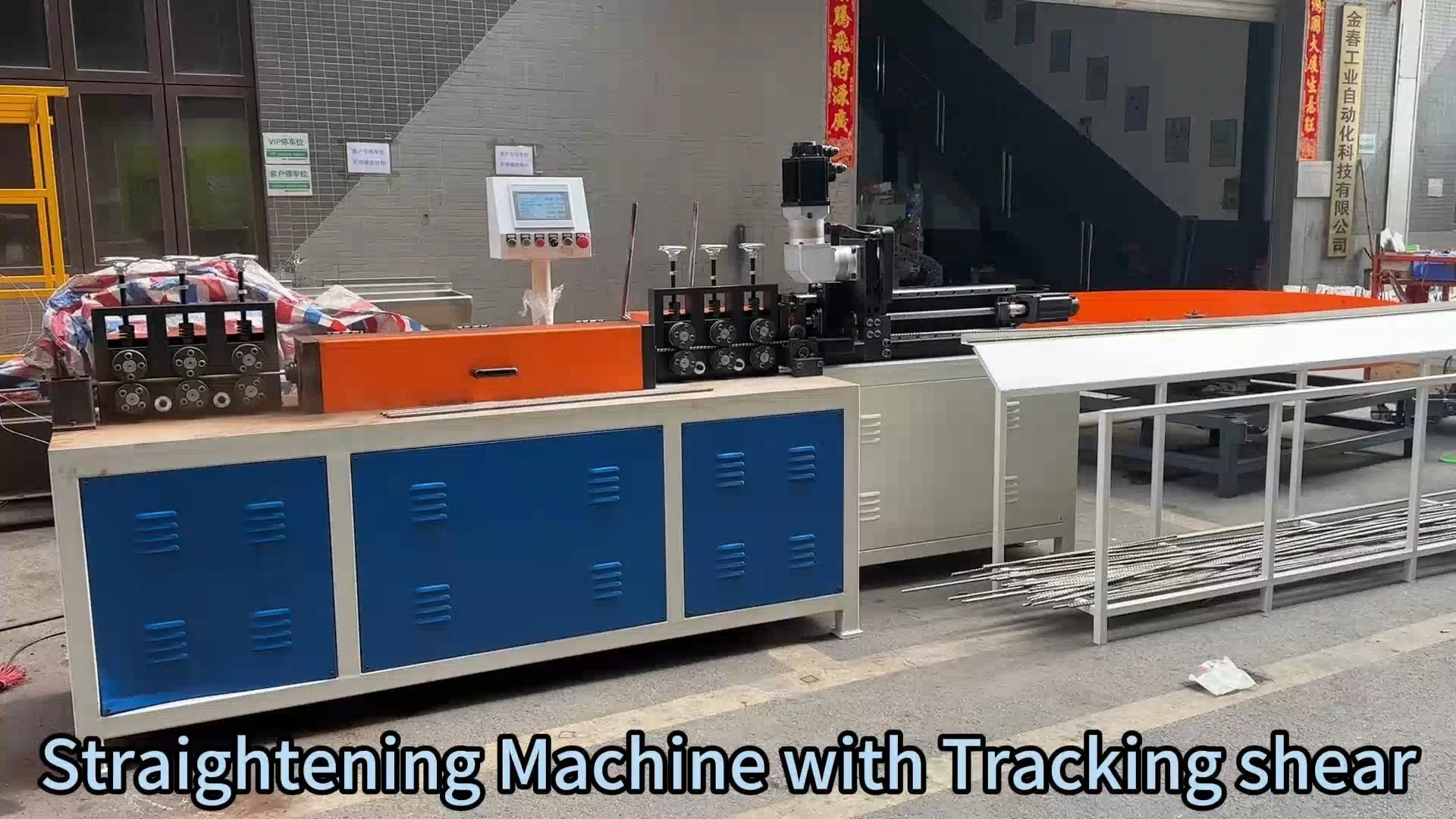

6-12mm Automatic Wire straightening and cutting machine with tracking shear
Auto Wire straightening and cutting machines are widely used in a variety of industries, such as construction, manufacturing, and agriculture, to produce high-quality wire products. Our Wire straightening machines are designed for easy use and provide hassle-free, flexible, and accurate operations. The Wire Diameter ranges from 6 – 12 mm and the tolerance is ±0.2mm
Features:
● Computer numerical control technology for high accuracy and consistency.
● Adjustable straightening and cutting parameters for different wire sizes and materials.
● Feeding mechanism for continuous wire feeding.
● Straightening rollers for precise wire straightening.
● Cutting blades for precise wire cutting.
● Control system for programming and adjusting machine operations.
Product Description
Technical parameters
|
Servo tracking cutting straighter |
|
|
Models |
6-12 |
|
Cutting length range |
More than 50mm |
|
Feeding wire speed |
over 60M/min |
|
Length error |
500mm ±0.5mm（Per 500 add 0.5mm） |
|
Material |
Round wire Galvanised,Stainless steel, Copper, Brass, Aluminium |
|
Receive product rack size |
3070*1050*1550 |
|
Feeding wire motor |
3.7KW with reducer Chinese top brand 40 Medium reducer-GH40-2200W-3S |
|
Straighter motor |
11.0KW-2P--Chinese top brand |
|
Tracking servo cutting motor |
1.5KW，1500R--Chinese top brand |
|
Guide rail module |
TAIWAN top brand |
|
Ball screw module |
TAIWAN top brand |
|
Feeding wire group |
2 groups（6 straightening wheels） |
|
Control screen |
Touching screen |
|
Straighter quantity |
6pcs |
|
Cutting motor |
2.2kw |
|
Material range |
6-12mm（soft wire）(Hard wire 6-10mm) |
|
Machine size |
3070*1050*1550（mm） |
|
Wire spool holder |
Normal（without electricity）Auto（It can adjust speed and as machine speed goes） |
