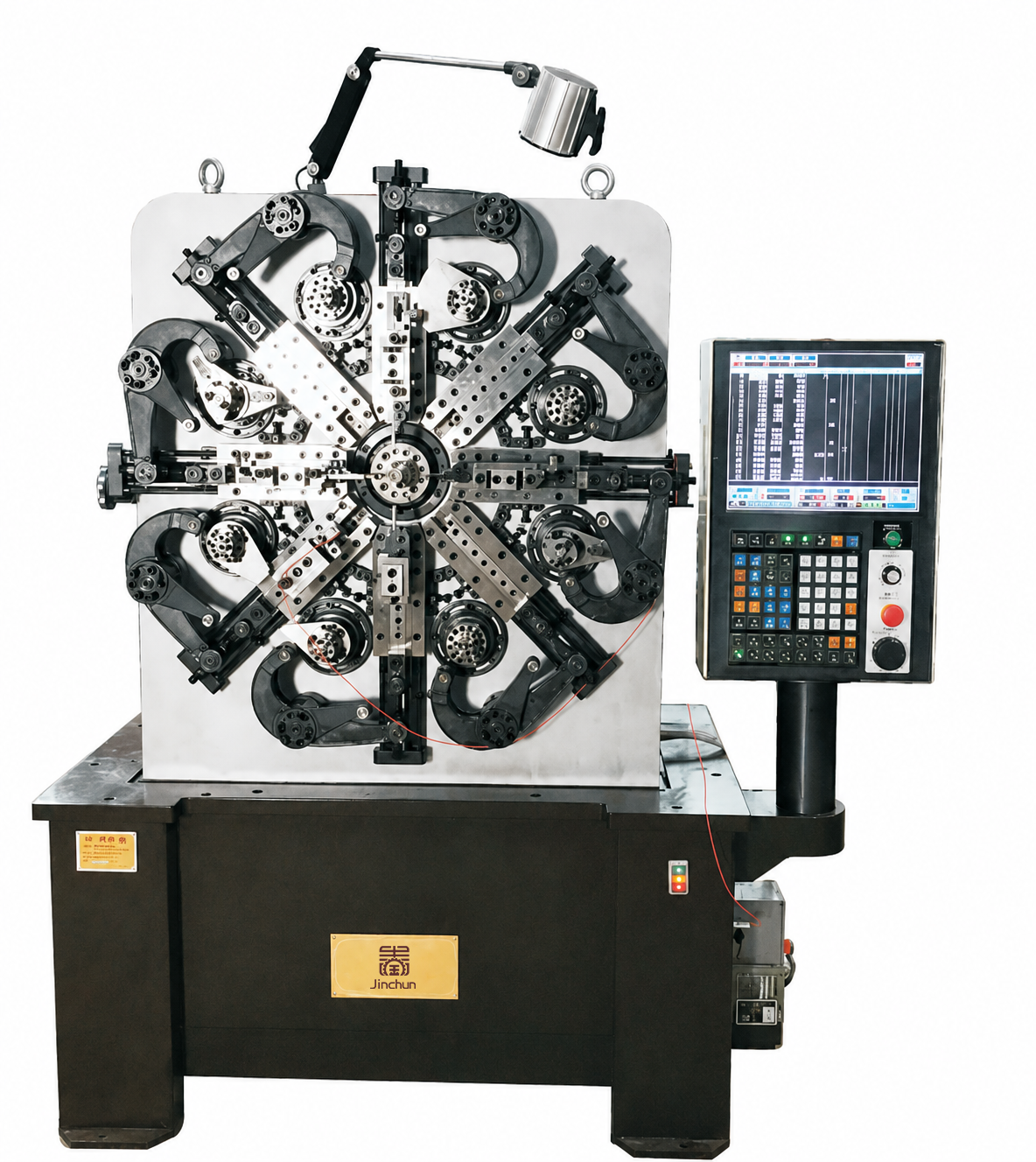

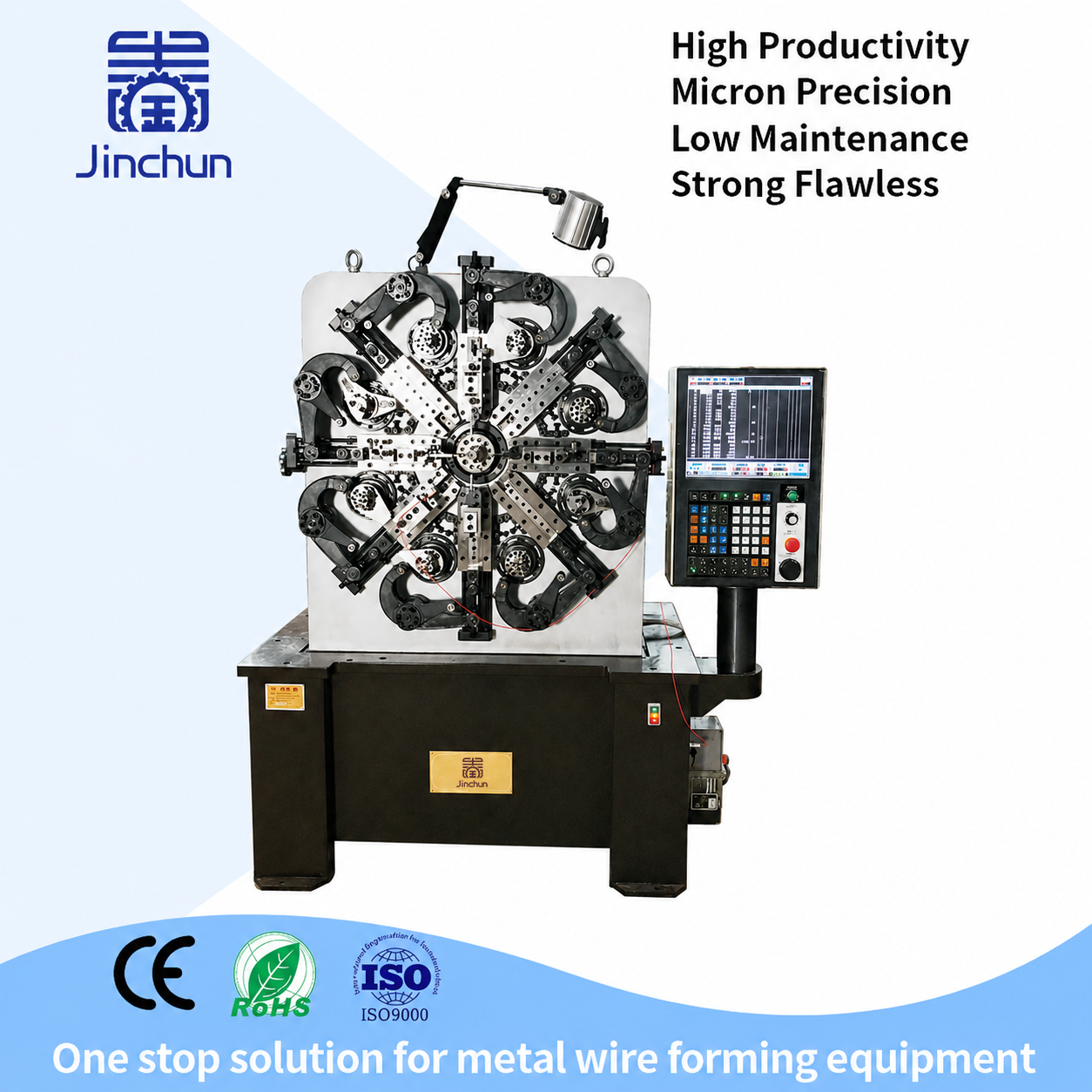

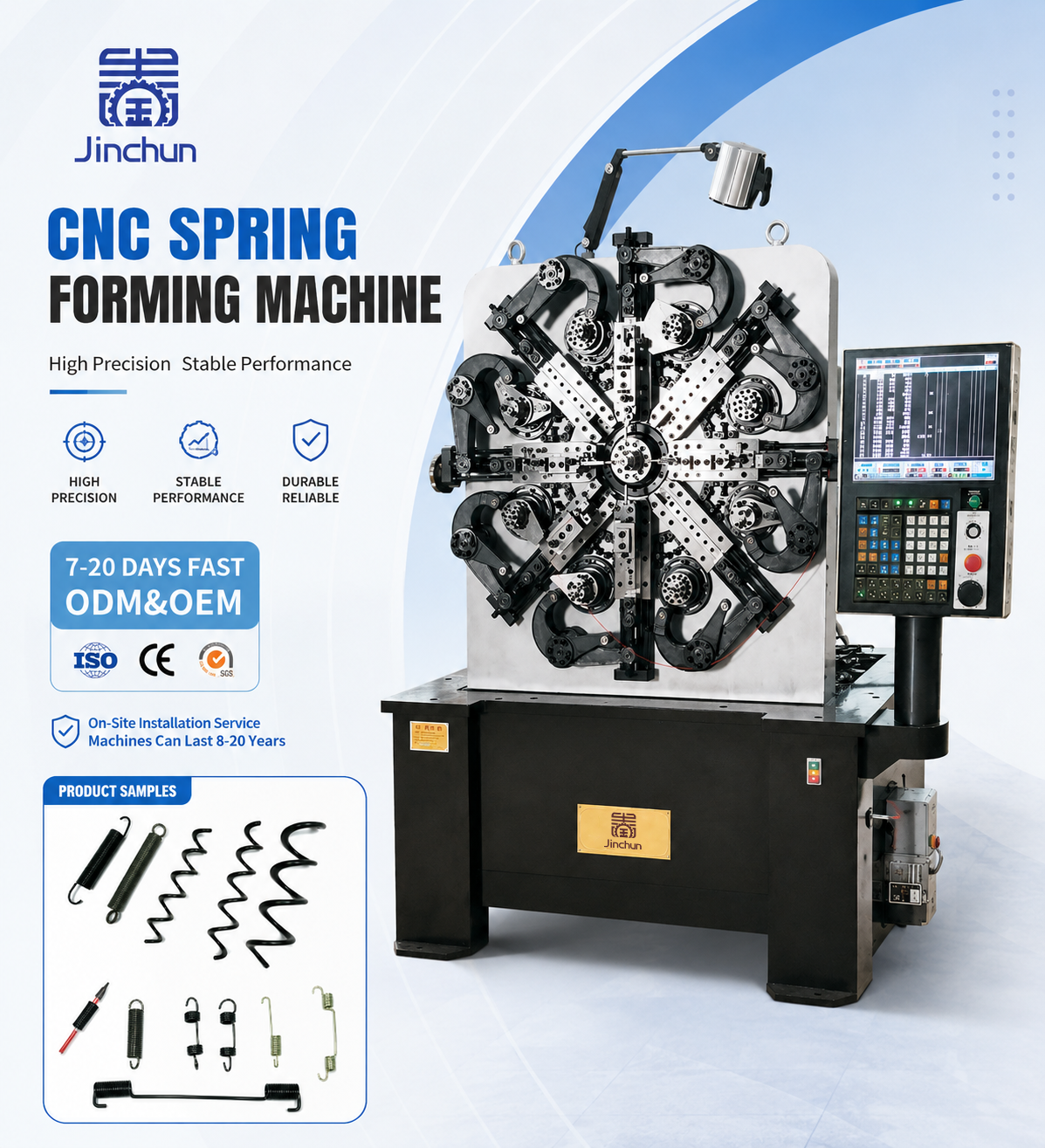

4-Axes CNC Versatile Spring Coiling Machine for High-Precision Wire Forming
About This Product
Key Details & Intelligent Functionality
Versatile Manufacturing Capabilities:This machine can manufacture vary types of springs (compression, extension, torsion, double torsion), and is also highly capable of wire forming in particular shapes or customized designs.
User-Friendly Interface & Easy Programming:This machine interface allows easy programming in place. The software can be continuously updated via USB port and RS232 port to keep your operations up to date.
- Powerful & Precise Wire Feeding:Equipped with a powerful and precise wire feeding mechanism, ensuring stable and ultra-precise feeding down to 0.2mm.
- Patented Wire Feeding System:Features a special China Utility Model Patent in the wire feeding system that minimizes vibration, resulting in excellent precision and long-term mechanical stability.
Primary Applications & Direct Impact
Technical Parameters
|
Machine Type |
CNC Versatile Spring Coiling Machine |
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
|
Processable Materials |
Stainless Steel / Copper / Aluminum |
Weight (KG) |
3000 |
|
Warranty Period |
1 year |
Place of Origin |
Guangdong, China |
|
Video Inspection before Shipment |
Available |
Mechanical Test Report |
Available |
|
Brand |
Jinchun |
Automation Level |
Fully automatic |
|
Additional Function |
Fixed - length Shearing |
Core Selling Point |
High Precision |
|
Wire Diameter |
1.8 ~ 4.5mm iron wire |
Inflection Point Length |
750MM |
|
Axis Count |
4 Axis |
Rotation Degree |
0 ° --- 300 ° |
|
Feeding Wheels |
3 sets (GB Cr12, hardness up to 58 °) |
Feeding Servo Motor |
2.7Kw |
|
Rotation Servo Motor |
2.7Kw |
Bending Angle Servo Motor |
1Kw |
|
CNC Axle |
5 - axis |
Machine Dimensions |
1820mm * 1200mm * 1910mm |
Product Introduction
Product Parameter
|
Condition |
New |
Machine Type |
Wire Drawing Machine |
|
Video Output - Inspection |
Available |
Mechanical Test Report |
Provided |
|
Marketing Type |
Regular Product |
Core Component Warranty |
1 year |
|
Core Components |
PLC, Engine, Gearbox, Motor, Gears |
Brand Name |
Jinchun |
|
Raw Material |
Steel Bars |
Materials/Metal Processing |
Stainless Steel / Copper / Aluminum |
|
Power |
CNC (Computer Numerical Control) |
Automation |
Automatic |
|
Additional Service |
Cut to Fixed Length |
Year |
2026 |
|
Weight (kg) |
3000 |
Main Selling Point |
High Precision |
|
Warranty |
1 year |
Showroom Locations |
Vietnam, Brazil, Saudi Arabia, Russia, Malaysia |
|
Wire Diameter |
1.8 ~ 4.5 mm iron wire |
Inflection Point Length |
750 mm |
|
Straightening Wheels |
18 sets (using GB Cr12) |
Rotation Degree |
0° - 300° |
